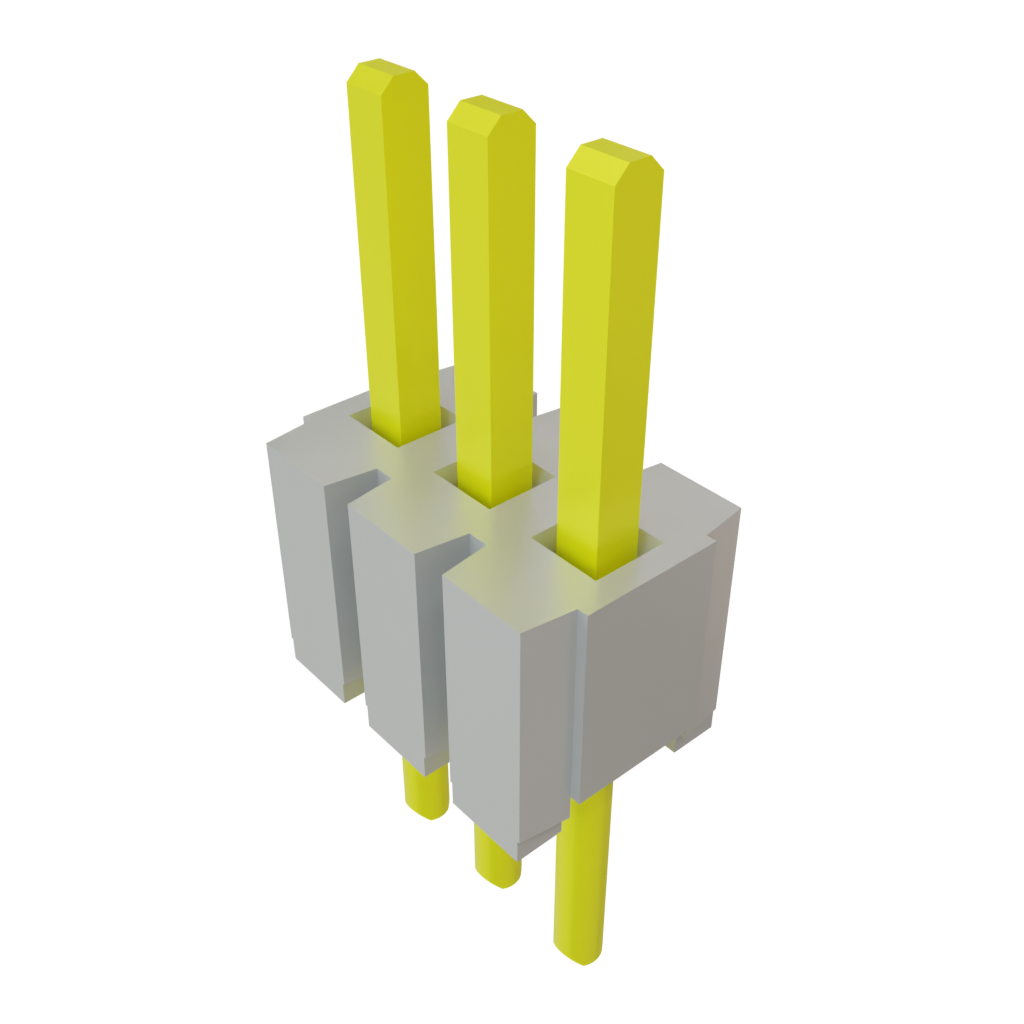

HMTMS-103-25-G-S-125

Name: Samtec HMTMS-103-25-G-S-125
Brand: Samtec
SKU: 200-HMTMS10325GS125
Price: 0.85 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-HMTMS10325GS125

Mfr. No:

HMTMS-103-25-G-S-125

Mfr.:

Samtec

Description:

Board to Board & Mezzanine Connectors .050 x .100 High-Temp Variable Post Height Micro Terminal Strip

Datasheet:

HMTMS-103-25-G-S-125 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

Availability

Stock:: An unexpected error occurred. Please try again later.

1.250 Can Dispatch in 5 Days

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,851 €	0,85 €
	0,848 €	8,48 €
	0,655 €	32,75 €
	0,531 €	53,10 €
	0,453 €	226,50 €
	0,438 €	438,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
Product:	Headers
Number of Positions:	3 Position
Pitch:	1.27 mm (0.05 in)
Number of Rows:	1 Row
Termination Style:	Solder
Mounting Angle:	Straight
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Phosphor Bronze
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	HMTMS
Packaging:	Bulk
Application:	Optional polarization
Brand:	Samtec
Flammability Rating:	UL 94 V-0
Mounting Style:	Straight Pin
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	1
Subcategory:	Board to Board & Mezzanine Connectors
Termination Post Length:	3.175 mm
Tradename:	Flex Stack

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Compliance Codes

TARIC:: 8536693000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Origin Classifications

Country of Origin:: United States
Assembly Country of Origin:: Not available
Country of Diffusion:: Not available

The country is subject to change at the time of shipment.

Flexible Stacking Connectors

Samtec Flex Stacking Board Connectors feature a large variety of board-to-board connectors with design flexibility. These Samtec board-to-board connector systems are available in a variety of pitches, densities, stack heights, orientations, and other standard or modified options, making it easy to find the right connector for any application. Flex-Stack options include one-piece, low profile pass-through, elevated, hermaphroditic, shrouded, coplanar, parallel, and perpendicular. Post heights are adjustable in increments of 0.005” (0.13mm).
