HLE-103-02-L-DV-BE-K-TR

Name: Samtec HLE-103-02-L-DV-BE-K-TR
Brand: Samtec
SKU: 200-HLE10302LDVBEKTR
Price: 2.21 EUR
Availability: InStock

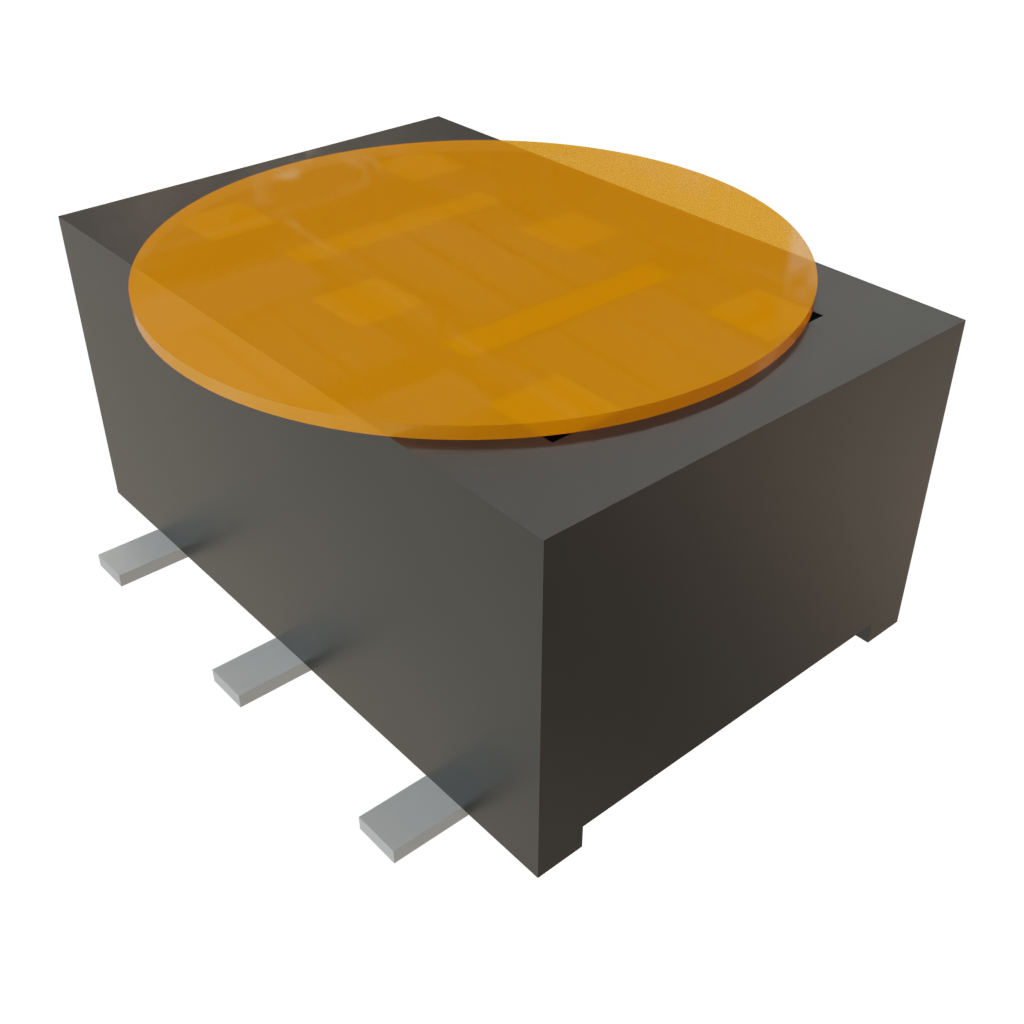

Images are for reference only
See Product Specifications

Mouser No:

200-HLE10302LDVBEKTR

Mfr. No:

HLE-103-02-L-DV-BE-K-TR

Mfr.:

Samtec

Description:

Headers & Wire Housings Cost-Effective Reliable Socket

Datasheet:

HLE-103-02-L-DV-BE-K-TR Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 1.076

Stock:: 1.076

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 825

Expected 6/8/2026
Factory Lead Time:: 1

Week Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Packaging:

Full Reel (Order in multiples of 825)

Cut Tape

MouseReel™ (+5,00 €)

Pricing (EUR)

Qty.	Unit Price	Ext. Price
Cut Tape / MouseReel™ ^†
	2,21 €	2,21 €
	1,85 €	92,50 €
	1,57 €	157,00 €
	1,37 €	685,00 €
Full Reel (Order in multiples of 825)
	1,30 €	1.072,50 €
	1,20 €	1.980,00 €

† A MouseReel™ fee of 5,00 € will be added and calculated in your basket. All MouseReel™ orders are non-cancellable and non-returnable. ↩

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Sockets
Number of Positions:	6 Position
Pitch:	2.54 mm (0.1 in)
Number of Rows:	2 Row
Mounting Style:	SMD/SMT
Termination Style:	Solder
Mounting Angle:	Straight
Contact Plating:	Gold
Termination Post Length:	3.055 mm (0.12 in)
Series:	HLE
Tradename:	Tiger Beam
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Samtec
Contact Material:	Beryllium Copper
Current Rating:	4.1 A
Flammability Rating:	UL 94 V-0
Housing Material:	Liquid Crystal Polymer (LCP)
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	825
Subcategory:	Headers & Wire Housings
Voltage Rating:	400 VAC
Unit Weight:	162,780 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Test Report (PDF)

Compliance Codes

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Origin Classifications

Country of Origin:: Vietnam
Assembly Country of Origin:: Not available
Country of Diffusion:: Not available

The country is subject to change at the time of shipment.
