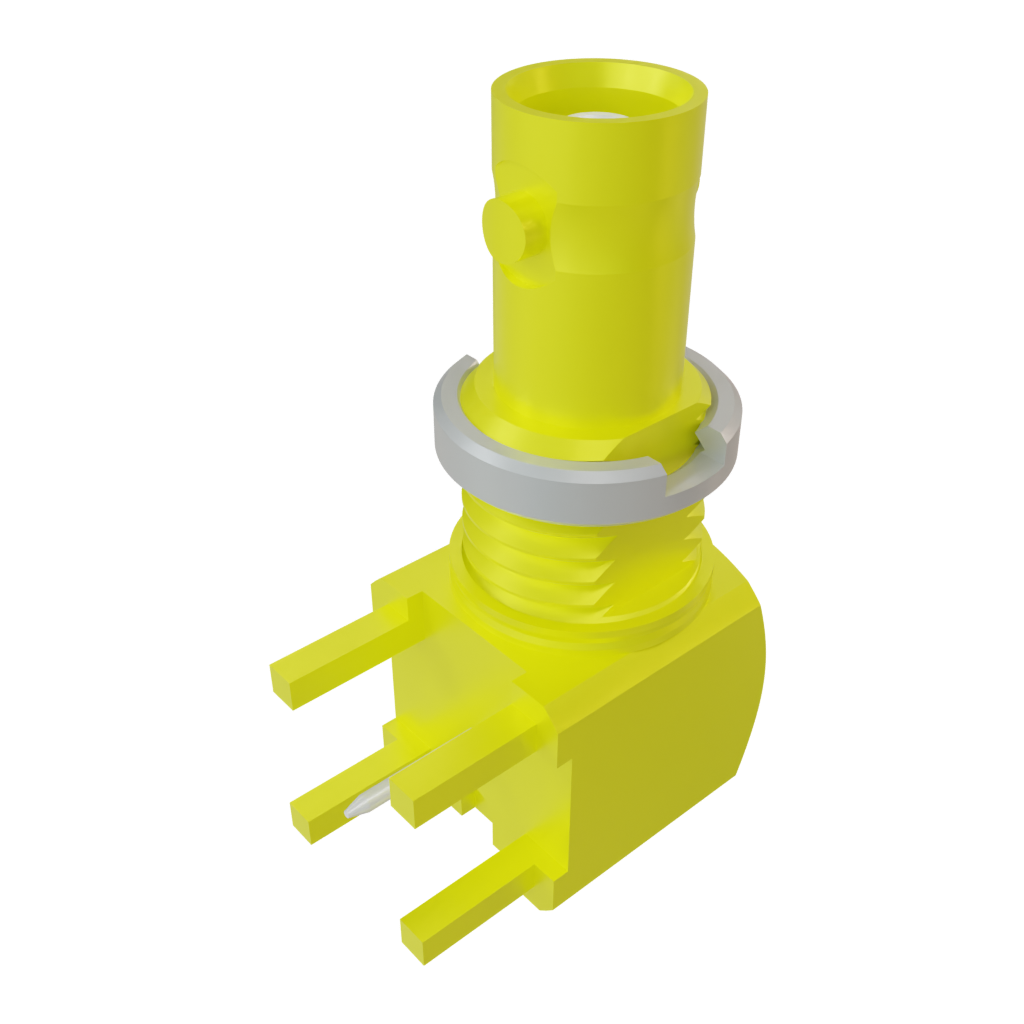

HDBNC-J-P-GN-RA-BH2

Name: Samtec HDBNC-J-P-GN-RA-BH2
Brand: Samtec
SKU: 200-HDBNCJPGNRABH2
Price: 9.07 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-HDBNCJPGNRABH2

Mfr. No:

HDBNC-J-P-GN-RA-BH2

Mfr.:

Samtec

Description:

RF Connectors / Coaxial Connectors 75 OHM HIGH-DENSITY BNC JACK

Datasheet:

HDBNC-J-P-GN-RA-BH2 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec HDBNC-J-P-GN-RA-BH2

In Stock: 7

Stock:: 7 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 5 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	9,07 €	9,07 €
	7,86 €	196,50 €
	6,66 €	333,00 €
	5,49 €	549,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	RF Connectors / Coaxial Connectors
RoHS:
Product:	PCB Connectors
RF Series:	HD-BNC
Gender:	Jack (Socket)
Impedance:	75 Ohms
Maximum Frequency:	6 GHz
Termination Style:	Solder
Orientation:	Right Angle
Polarity:	Standard
Mounting Style:	Through Hole
Packaging:	Kit
Brand:	Samtec
Contact Plating:	Gold
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MY
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 65 C
Product Type:	RF Connectors / Coaxial Connectors
Series:	HDBNC
Factory Pack Quantity:	100
Subcategory:	RF Interconnects
Voltage Rating:	500 V
Unit Weight:	6,147 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Low Frequency RF Cables & Interconnects

Samtec offers a wide range of Low-Frequency RF Cables and Interconnects designed for 50Ω and 75Ω applications with a variety of straight and right-angle jacks, plugs, and bulkhead jacks. Vertical, right-angle, or edge-mount orientations and through-hole, surface-mount, or mixed technology PCB terminations are available for these products. The RF board connectors are available for board-to-board or cable-to-board, ganged, and blind-mate applications. Samtec RF cable assemblies are available with low-loss microwave/millimeter wave cables from 0.047 to 0.277, RG-type cables, 12G-SKI Belden cables, high-density ganged, and Samtec-optimized varieties. Additionally, Samtec RF cable connectors with bayonet, threaded, and push-on coupling features are available for a wide variety of industry-standard cables.
