GPPC-PS-1-10-EG-ST-EM-1N

Name: Samtec GPPC-PS-1-10-EG-ST-EM-1N
Brand: Samtec
SKU: 200-GPPCPS10EGSTEM1N
Price: 93.33 EUR
Availability: OutOfStock

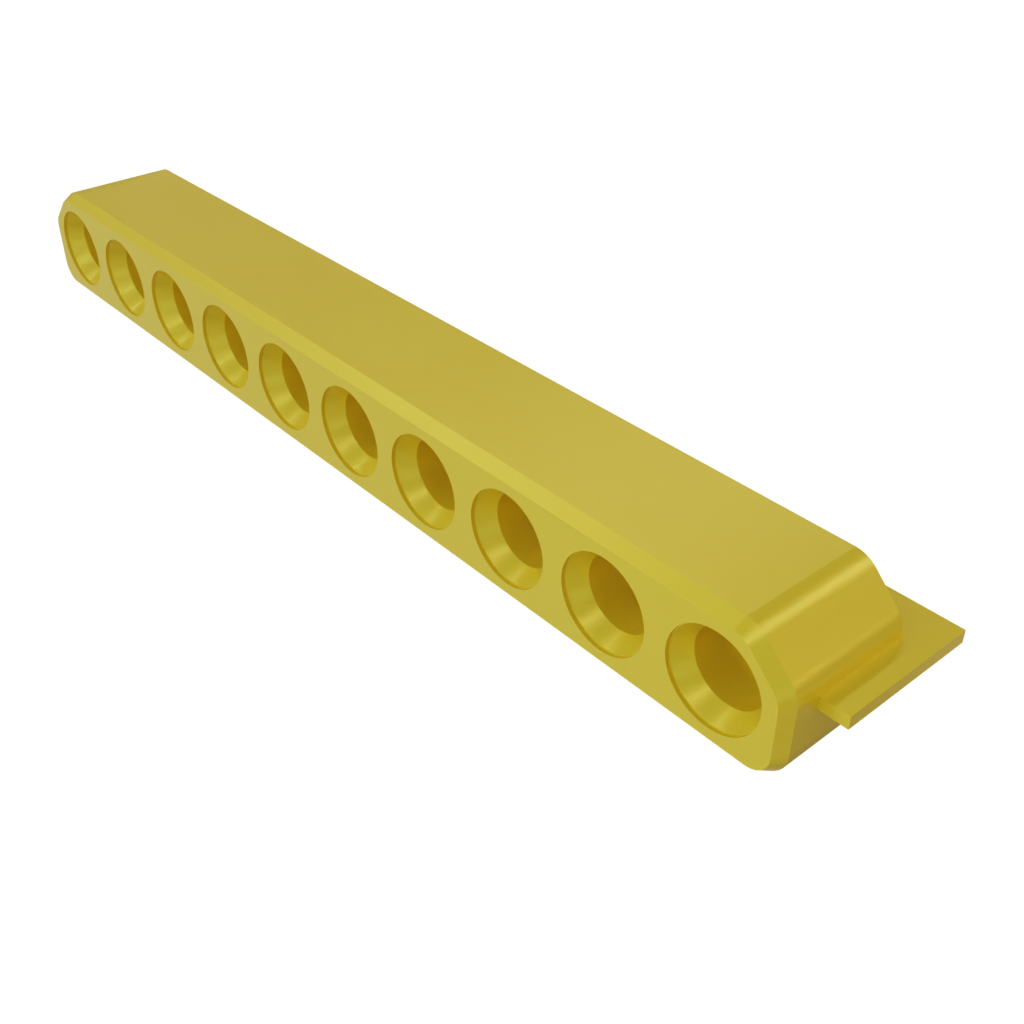

Images are for reference only
See Product Specifications

Mouser No:

200-GPPCPS10EGSTEM1N

Mfr. No:

GPPC-PS-1-10-EG-ST-EM-1N

Mfr.:

Samtec

Description:

RF Connectors / Coaxial Connectors Magnum RF Ganged, Multi-Port SMPM Block

Datasheet:

GPPC-PS-1-10-EG-ST-EM-1N Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec GPPC-PS-1-10-EG-ST-EM-1N

Availability

Stock:: 0

You can still purchase this product for backorder.

An unexpected error occurred. Please try again later.
Factory Lead Time:: 1 Week Estimated factory production time.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

This Product Ships FREE

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	93,33 €	93,33 €
	86,42 €	864,20 €
	80,01 €	2.000,25 €
	74,09 €	3.704,50 €
	71,28 €	7.128,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	RF Connectors / Coaxial Connectors
Product:	Connectors
RF Series:	SMPM
Gender:	Plug (Pin)
Impedance:	50 Ohms
Maximum Frequency:	55 GHz
Termination Style:	Solder
Orientation:	Straight
Mounting Style:	Edge Mount
Packaging:	Bulk
Body Finish:	Gold
Body Material:	Brass
Brand:	Samtec
Contact Material:	Brass
Contact Plating:	Gold
Product Type:	RF Connectors / Coaxial Connectors
Series:	GPPC
Factory Pack Quantity:	1
Subcategory:	RF Interconnects
Tradename:	Magnum RF

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Technical Resources

This functionality requires JavaScript to be enabled.

TARIC:: 8536691000
USHTS:: 8536694010
ECCN:: EAR99

Magnum RF™ Connectors / Cable Assemblies

Samtec Magnum RF™ Connectors / Cable Assemblies are ganged, multi-position RF blocks and cable assemblies for millimeter-wave applications. These products are ideal when limited space and a high operating frequency are required. The ganged SMPM connectors operate mode-free up to 65GHz frequency. These connectors feature a micro-miniature SMPM style that enables small bundle sizes for weight savings and increased airflow for cooling.

GPPC Magnum RF™ Ganged, Multi-Position SMPM Blocks

Samtec GPPC Magnum RF™ Ganged, Multi-Position SMPM Blocks offer a high-density, space-saving design with a 3.56mm (0.140") pitch. These single-row connectors feature a push-on interface for quick installation and a standard surface-mount (-SL option) or edge-mount board termination. These cable-to-board connectors also feature bullet adapters, allowing axial and radial misalignment and blind mating. Samtec GPPC Magnum RF™ Ganged, Multi-Position SMPM Blocks are designed to mate with GC47 and GC86 series connectors.
