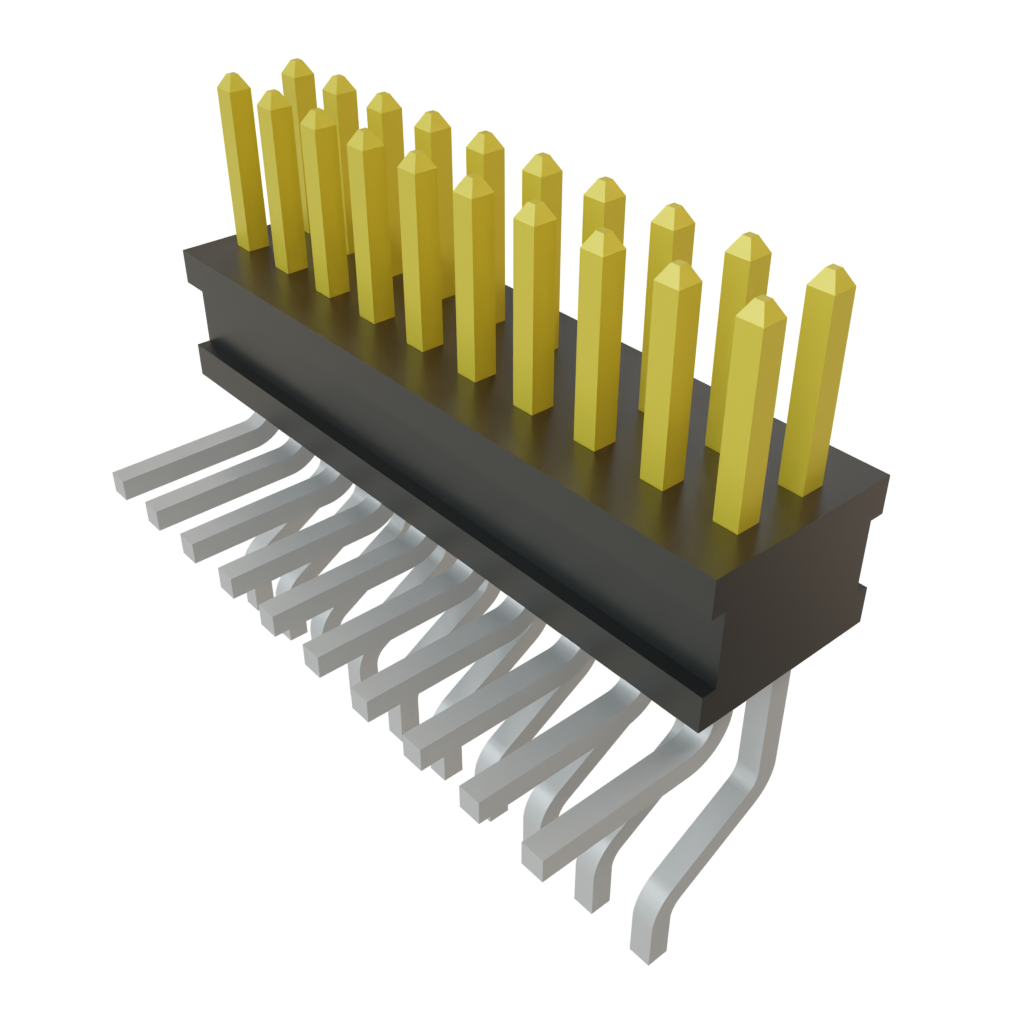

FTSH-110-01-F-MT-TR

Name: Samtec FTSH-110-01-F-MT-TR
Brand: Samtec
SKU: 200-FTSH11001FMTTR
Price: 2.62 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

200-FTSH11001FMTTR

Mfr. No:

FTSH-110-01-F-MT-TR

Mfr.:

Samtec

Datasheet:

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Qty.	Unit Price	Ext. Price
	2,62 €	2,62 €
	2,52 €	63,00 €
	2,37 €	118,50 €
	2,18 €	218,00 €
Full Reel (Order in multiples of 375)
	2,12 €	795,00 €
	2,00 €	1.500,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Pin Strip
Number of Positions:	20 Position
Pitch:	1.27 mm (0.05 in)
Number of Rows:	2 Row
Row Spacing:	1.27 mm (0.05 in)
Mounting Style:	SMD/SMT
Termination Style:	Solder
Mounting Angle:	Right Angle
Contact Gender:	Pin (Male)
Contact Plating:	Gold
Mating Post Length:	3.05 mm (0.12 in)
Series:	FTSH
Application:	Board-to-Board
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Samtec
Contact Material:	Phosphor Bronze
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MY
Current Rating:	3.4 A
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Material:	Liquid Crystal Polymer (LCP)
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	375
Subcategory:	Headers & Wire Housings
