FTSH-104-04-FM-DV-P-TR

Name: Samtec FTSH-104-04-FM-DV-P-TR
Brand: Samtec
SKU: 200-FTSH10404FMDVPTR
Price: 1.06 EUR
Availability: OutOfStock

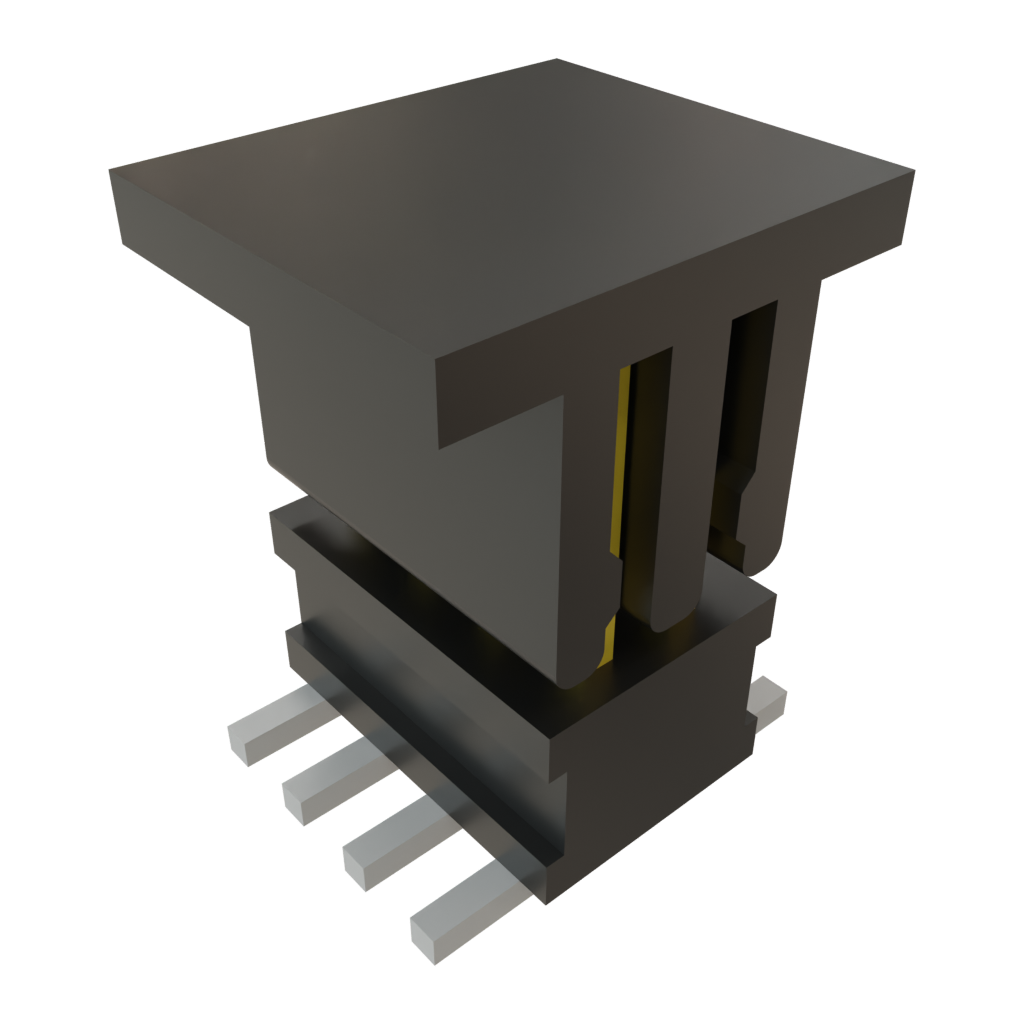

Images are for reference only
See Product Specifications

Mouser No:

200-FTSH10404FMDVPTR

Mfr. No:

FTSH-104-04-FM-DV-P-TR

Mfr.:

Samtec

Description:

Headers & Wire Housings High Reliability Header Strips

Datasheet:

FTSH-104-04-FM-DV-P-TR Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec FTSH-104-04-FM-DV-P-TR

Availability

Stock:: Non-Stocked

An unexpected error occurred. Please try again later.
Factory Lead Time:: 2 Weeks Estimated factory production time.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	1,06 €	1,06 €
	0,972 €	243,00 €
Full Reel (Order in multiples of 450)
	0,929 €	418,05 €
	0,757 €	1.703,25 €
	0,662 €	3.276,90 €
	0,593 €	5.870,70 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Pin Strip
Number of Positions:	8 Position
Pitch:	1.27 mm (0.05 in)
Number of Rows:	2 Row
Row Spacing:	1.27 mm (0.05 in)
Mounting Style:	SMD/SMT
Termination Style:	Solder
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Gold
Mating Post Length:	3.81 mm (0.15 in)
Series:	FTSH
Application:	Board-to-Board
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Samtec
Contact Material:	Phosphor Bronze
Current Rating:	3.4 A
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Material:	Liquid Crystal Polymer (LCP)
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	450
Subcategory:	Headers & Wire Housings
Unit Weight:	49,200 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Test Report (PDF)

Compliance Codes

TARIC:: 8536693000
CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Origin Classifications

Country of Origin:: Malaysia
Assembly Country of Origin:: Not available
Country of Diffusion:: Not available

The country is subject to change at the time of shipment.

FTSH .050" (1.27mm) Micro Terminal Headers

Samtec FTSH .050" (1.27mm) Micro Terminal Headers feature a variety of standard options. These options include a choice of surface mount, vertical or horizontal orientations, through-hole or mixed technology tails, and a variety of post heights. Additionally, Samtec FTSH terminal headers provide users with the choices of end shrouds and ejector shrouds for alignment or blind mating with polarization and keying options. These FTSH SMT Terminal strips mate with FFSD / FFTP Series cable assemblies, CLP Series micro socket strips, and FLE Series socket strips.
