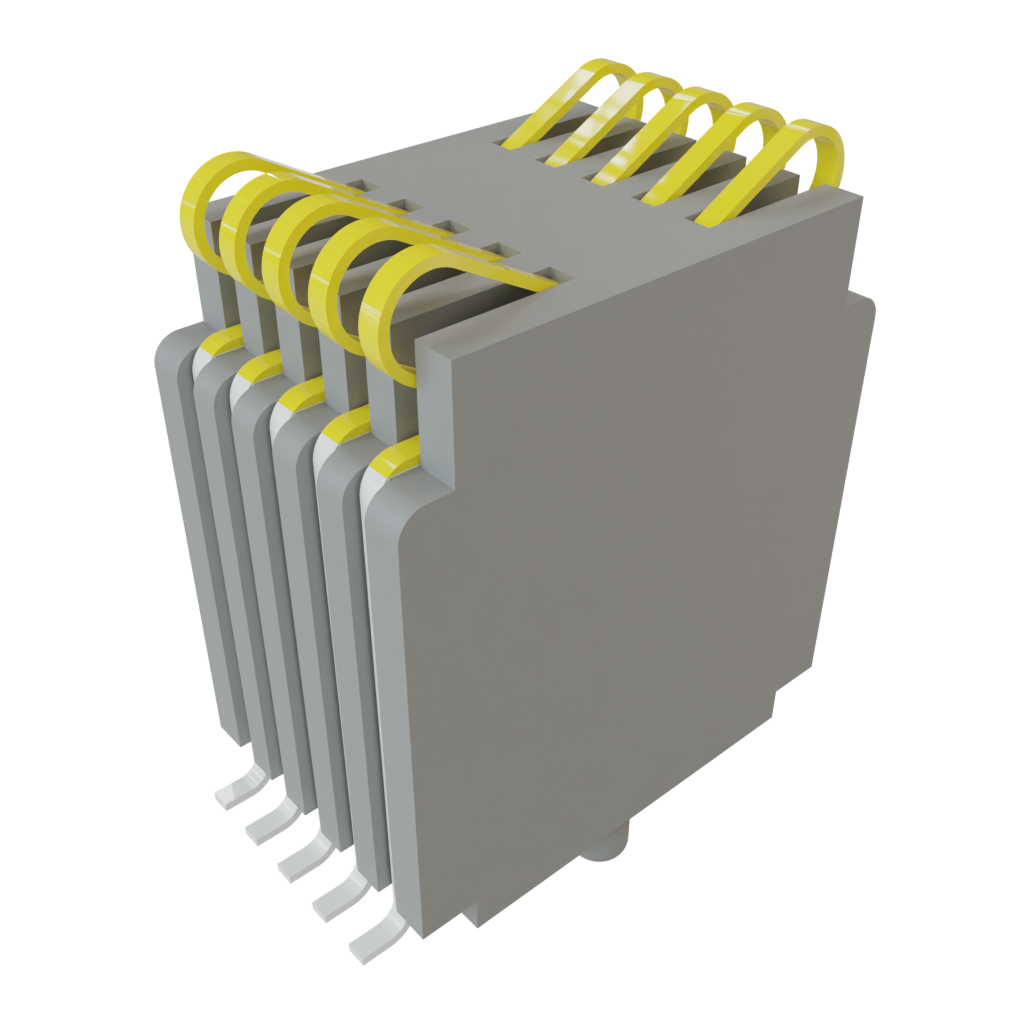

FSI-105-10-L-D-AB-TR

Name: Samtec FSI-105-10-L-D-AB-TR
Brand: Samtec
SKU: 200-FSI10510LDABTR
Price: 5.76 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-FSI10510LDABTR

Mfr. No:

FSI-105-10-L-D-AB-TR

Mfr.:

Samtec

Description:

Board to Board & Mezzanine Connectors 1.00 mm One-Piece Interface

Datasheet:

FSI-105-10-L-D-AB-TR Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 171

Stock:: 171 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 15 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	5,76 €	5,76 €
	5,21 €	130,25 €
	4,84 €	242,00 €
	4,61 €	461,00 €
Full Reel (Order in multiples of 175)
	4,61 €	806,75 €
	4,47 €	3.911,25 €

Alternative Packaging

Mfr. Part No.:

FSI-105-10-L-D-AB

Packaging:

Tube

Availability:

In Stock

Price:

5,68 €

Min:

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Connectors
Number of Positions:	10 Position
Pitch:	1.27 mm (0.05 in)
Number of Rows:	2 Row
Termination Style:	Solder
Mounting Angle:	Vertical
Current Rating:	2.8 A
Voltage Rating:	220 VAC
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Beryllium Copper
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	FSI
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MY
Flammability Rating:	UL 94 V-0
Mounting Style:	SMD/SMT
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	175
Subcategory:	Board to Board & Mezzanine Connectors
Unit Weight:	118 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Test Report (PDF)

TARIC:: 8536693000
CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Flexible Stacking Connectors

Samtec Flex Stacking Board Connectors feature a large variety of board-to-board connectors with design flexibility. These Samtec board-to-board connector systems are available in a variety of pitches, densities, stack heights, orientations, and other standard or modified options, making it easy to find the right connector for any application. Flex-Stack options include one-piece, low profile pass-through, elevated, hermaphroditic, shrouded, coplanar, parallel, and perpendicular. Post heights are adjustable in increments of 0.005” (0.13mm).
