FFSD-20-D-18.00-01-N

Name: Samtec FFSD-20-D-18.00-01-N
Brand: Samtec
SKU: 200-FFSD20D18.0001N
Price: 20.84 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

200-FFSD20D18.0001N

Mfr. No:

FFSD-20-D-18.00-01-N

Mfr.:

Samtec

Description:

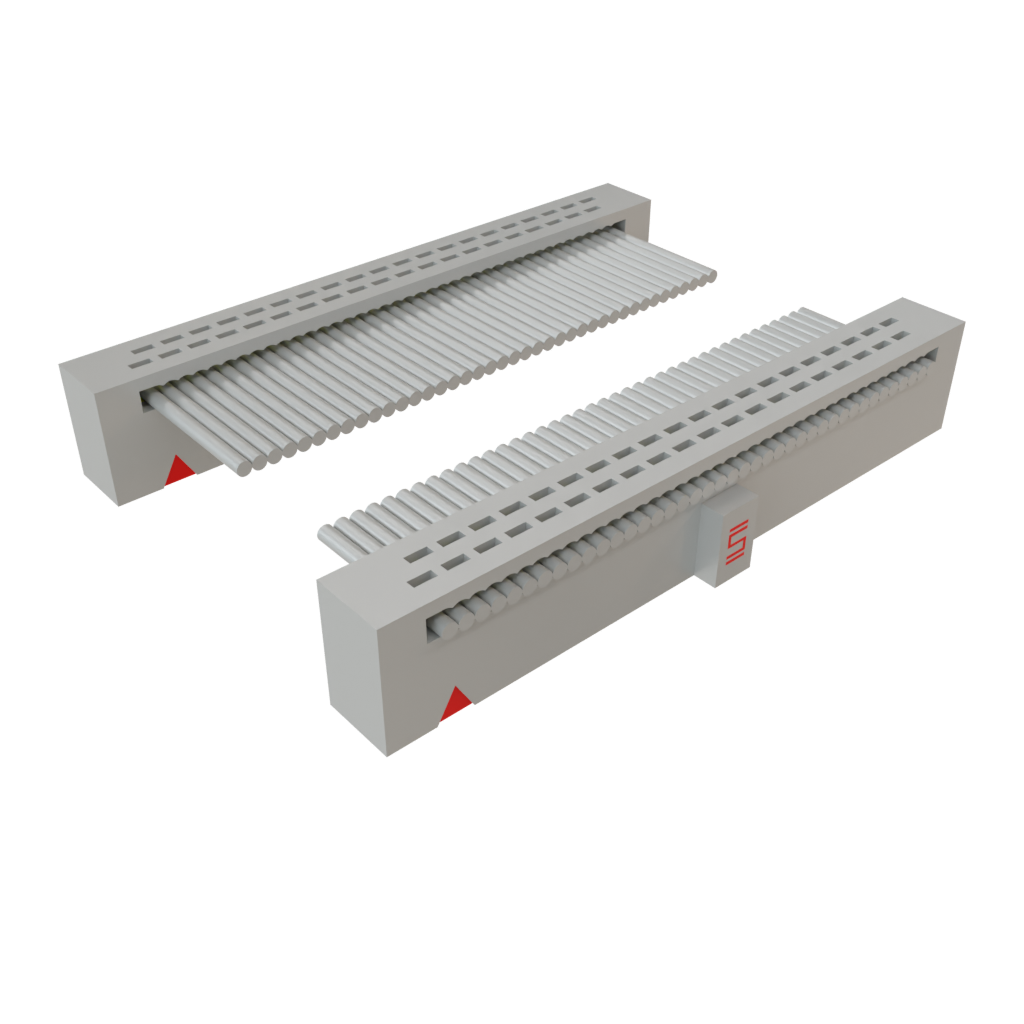

Ribbon Cables / IDC Cables .050 Low Profile Tiger Eye IDC Ribbon Cable Assembly

Datasheet:

FFSD-20-D-18.00-01-N Datasheet (PDF)

More Information

Learn more about Samtec FFSD-20-D-18.00-01-N

Availability

Stock:: 0

You can still purchase this product for backorder.

An unexpected error occurred. Please try again later.
Factory Lead Time:: 3 Weeks Estimated factory production time.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	20,84 €	20,84 €
	19,33 €	193,30 €
	18,03 €	450,75 €
	16,68 €	834,00 €
	15,61 €	1.561,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Ribbon Cables / IDC Cables
RoHS:
Type:	IDC Socket Cable
Connector End A:	IDC Socket
Connector End A Pin Count:	40 Position
Connector End B:	IDC Socket
Connector End B Pin Count:	40 Position
Pitch:	1.27 mm
Gender:	Female / Female
Cable Length:	457.2 mm
Wire Gauge - AWG:	30 AWG
Series:	FFSD
Packaging:	Bulk
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	VN
Current Rating:	2.3 A
Jacket Colour:	Grey
Jacket Material:	Polyvinyl Chloride (PVC)
Product:	Flat IDC Wire Cables
Product Type:	Ribbon Cables / IDC Cables
Factory Pack Quantity:	1
Subcategory:	Cable Assemblies
Tradename:	Tiger Eye
Unit Weight:	492 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

TARIC:: 8544421000
CNHTS:: 8544422900
CAHTS:: 8544420090
USHTS:: 8544422000
JPHTS:: 854442010
BRHTS:: 85444200
ECCN:: EAR99

5G Solutions

Samtec 5G Solutions support the ultra-high frequencies and high data rates that emerging 5G technologies demand. As this 5G network quickly gains momentum, new systems, devices, and equipment are needed for technologies such as mmWave, Massive MIMO, beamforming, and full-duplex (FDX). Samtec 5G Solutions feature high-performance products for four applications: Test and Development Systems, Remote Radio and Active Antennas, Network Equipment, and Automotive and Transportation.

FFSD/FFMD Tiger Eye™ Flat IDC Ribbon Cables

Samtec FFSD/FFMD Tiger Eye™ Flat IDC Ribbon Cables offer a low 0.050" (1.27mm) pitch connection that operates in a -40°C to +105°C temperature range. The IDC ribbon cables feature the high-performance Samtech Tiger Eye contacts with a choice of socket (FFSD) or plug (FFMD) terminations. The flat ribbon cables are 30AWG with options for single-end, double-end, or transfer-end (FFMD only). The FFSD/FFMD flat IDC ribbon cables mate with .016" (0.41mm) square post terminal strips.
