FFSD-07-D-07.00-01-F-N

Name: Samtec FFSD-07-D-07.00-01-F-N
Brand: Samtec
SKU: 200-FFSD07D070001FN
Price: 9.56 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-FFSD07D070001FN

Mfr. No:

FFSD-07-D-07.00-01-F-N

Mfr.:

Samtec

Description:

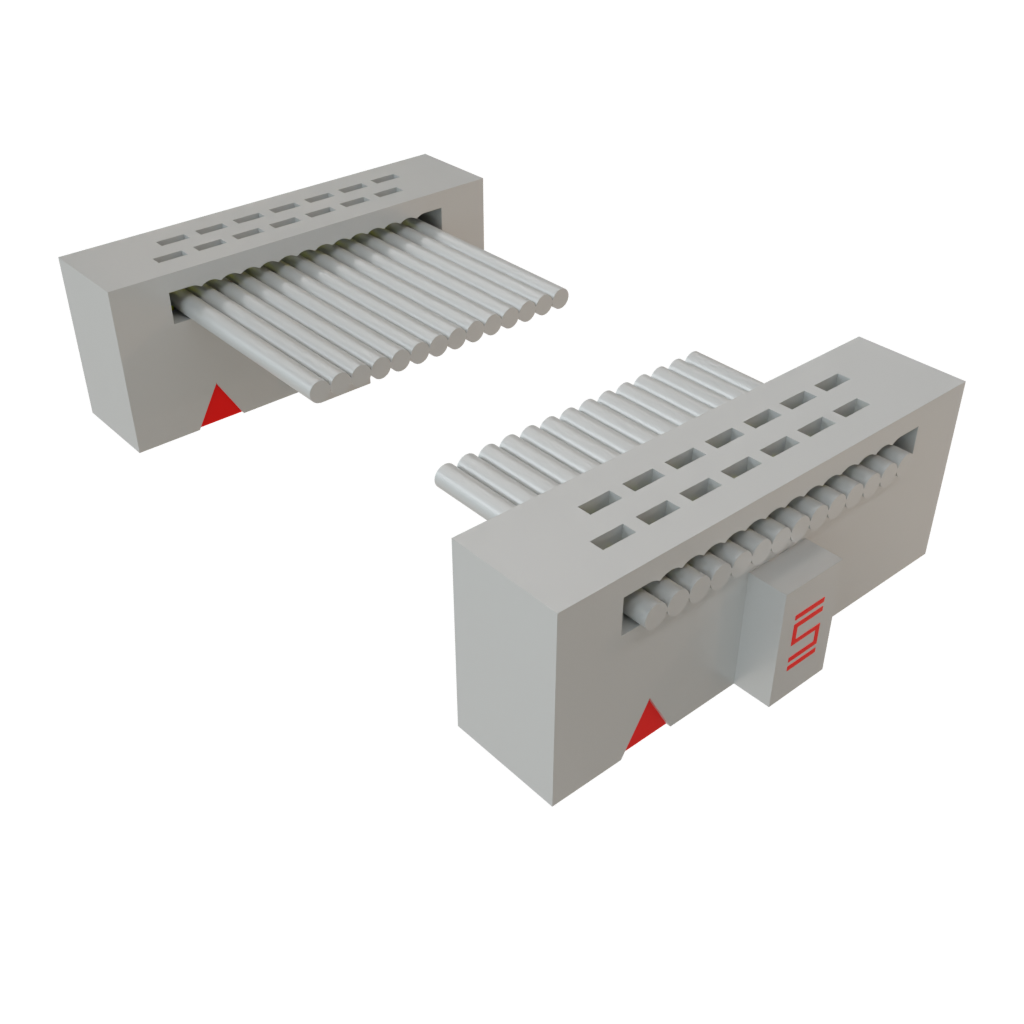

Ribbon Cables / IDC Cables .050 Low Profile Tiger Eye IDC Ribbon Cable Assembly

Datasheet:

FFSD-07-D-07.00-01-F-N Datasheet (PDF)

In Stock: 9

Stock:: 9 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 3 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	9,56 €	9,56 €
	8,66 €	86,60 €
	7,94 €	198,50 €
	7,25 €	362,50 €
	6,79 €	679,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Ribbon Cables / IDC Cables
RoHS:
Type:	IDC Socket Cable
Connector End A:	IDC Socket
Connector End A Pin Count:	14 Position
Connector End B:	IDC Socket
Connector End B Pin Count:	14 Position
Pitch:	1.27 mm
Gender:	Female / Female
Cable Length:	177.8 mm
Wire Gauge - AWG:	30 AWG
Series:	FFSD
Packaging:	Bulk
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Current Rating:	2.3 A
Jacket Colour:	Grey
Jacket Material:	Polyvinyl Chloride (PVC)
Product:	Flat IDC Wire Cables
Product Type:	Ribbon Cables / IDC Cables
Factory Pack Quantity:	1
Subcategory:	Cable Assemblies
Tradename:	Tiger Eye

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

TARIC:: 8544429090
CAHTS:: 8544420090
USHTS:: 8544429090
BRHTS:: 85444200
ECCN:: EAR99

5G Solutions

Samtec 5G Solutions support the ultra-high frequencies and high data rates that emerging 5G technologies demand. As this 5G network quickly gains momentum, new systems, devices, and equipment are needed for technologies such as mmWave, Massive MIMO, beamforming, and full-duplex (FDX). Samtec 5G Solutions feature high-performance products for four applications: Test and Development Systems, Remote Radio and Active Antennas, Network Equipment, and Automotive and Transportation.

FFSD/FFMD Tiger Eye™ Flat IDC Ribbon Cables

Samtec FFSD/FFMD Tiger Eye™ Flat IDC Ribbon Cables offer a low 0.050" (1.27mm) pitch connection that operates in a -40°C to +105°C temperature range. The IDC ribbon cables feature the high-performance Samtech Tiger Eye contacts with a choice of socket (FFSD) or plug (FFMD) terminations. The flat ribbon cables are 30AWG with options for single-end, double-end, or transfer-end (FFMD only). The FFSD/FFMD flat IDC ribbon cables mate with .016" (0.41mm) square post terminal strips.

Industry Standards Solution

Samtec's Industry Standards Solution improves compatibility, performance, and efficiency. Samtec provides connector products that interact with many types of hardware and software. This drives the need to adhere to a variety of Industry Standards.
