ET60T-D02-3-08-000-L-R1-S-H

Name: Samtec ET60T-D02-3-08-000-L-R1-S-H
Brand: Samtec
SKU: 200-0TD02308000LR1SH
Price: 6.03 EUR
Availability: InStock

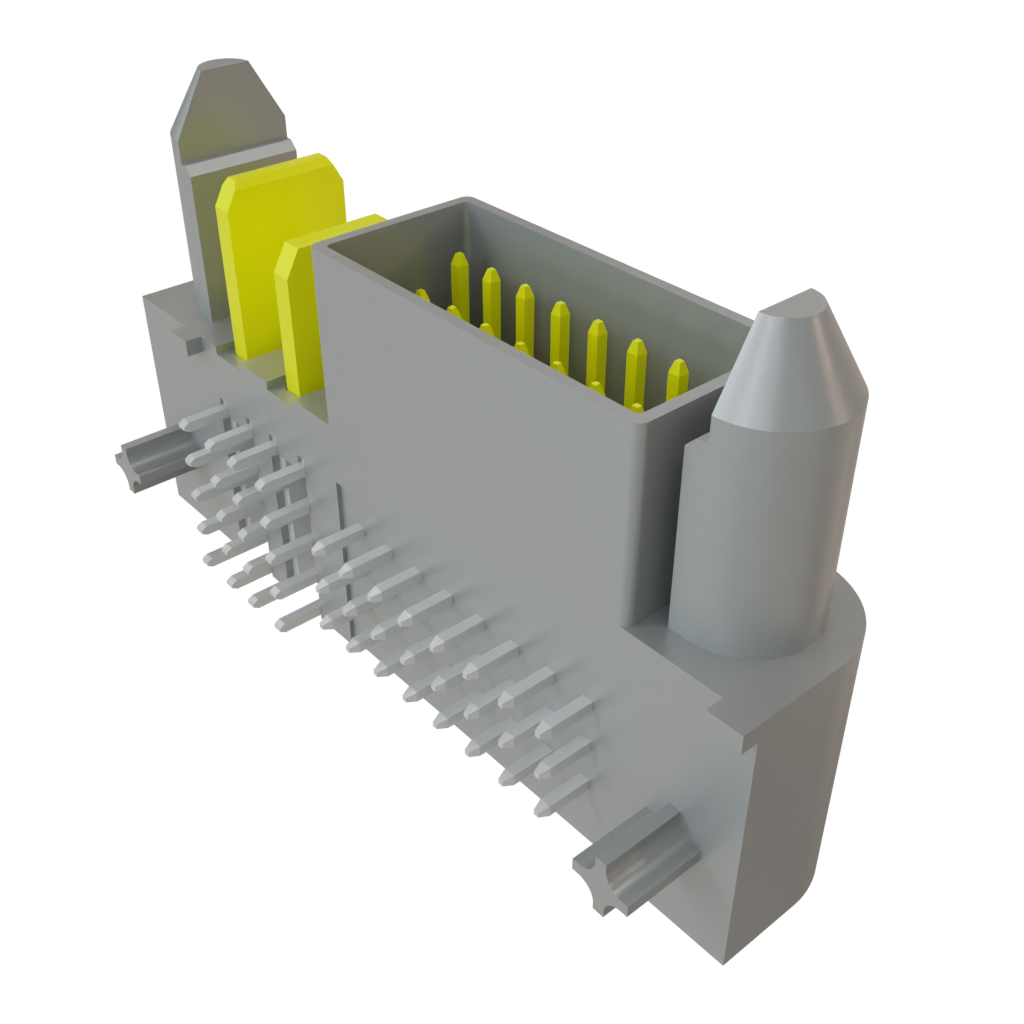

Images are for reference only
See Product Specifications

Mouser No:

200-0TD02308000LR1SH

Mfr. No:

ET60T-D02-3-08-000-L-R1-S-H

Mfr.:

Samtec

Description:

Power to the Board EXTreme Ten60Power 60 Amp Signal/Power Combo

Datasheet:

ET60T-D02-3-08-000-L-R1-S-H Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec ET60T-D02-3-08-000-L-R1-S-H

In Stock: 29

Stock:: 29 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 8 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	6,03 €	6,03 €
	6,02 €	602,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Power to the Board
RoHS:
Product Type:	Power to the Board
Contact Gender:	Pin (Male)
Current Rating:	60 A
Voltage Rating:	280 VAC
Number of Positions:	2 Power, 24 Signal
Mounting Style:	Through Hole
Termination Style:	Solder Pin
Pitch:	5.5 mm, 2.54 mm
Series:	ET60T
Packaging:	Tray
Tradename:	EXTreme Ten60Power
Brand:	Samtec
Contact Material:	Copper Alloy, Phosphor Bronze
Contact Plating:	Gold
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	VN
Housing Colour:	Black
Housing Material:	Liquid Crystal Polymer (LCP)
Maximum Operating Temperature:	+ 105 C
Minimum Operating Temperature:	- 40 C
Mounting Angle:	Right Angle
Number of Rows:	3 Row
Product:	Headers
Factory Pack Quantity:	20
Subcategory:	Power Connectors

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

ET60T-D02-3-08-000-L-R1-S-H Datasheet (PDF)

Images


Specification Sheets

Technical Resources

USHTS:: 8536694040
ECCN:: EAR99

PowerStrip™ EXTreme Ten60Power™ Connectors

Samtec PowerStrip™ EXTreme Ten60Power™ Connectors are designed for high-power applications with performance up to 60A per power blade. These power-to-board connectors feature a modular high-power and signal combo for mid-board or backplane applications. The EXTreme Ten60Power™ connectors are designed as high-current and low-profile interconnects. These EXTreme Ten60Power™ connectors provide maximum current-to-length ratio, packaged in a low 10mm height housing that enhances airflow within the system. The EXTreme Ten60Power™ connectors are available in AC-DC power combinations and split power options. These ET60T/ET60S connectors are also highly configurable with multiple pitch options and power or power/signal combinations for blind-mating at the backplane or mid-board.
