ESS-120-TT-03

Name: Samtec ESS-120-TT-03
Brand: Samtec
SKU: 200-ESS120TT03
Price: 3.41 EUR
Availability: OutOfStock

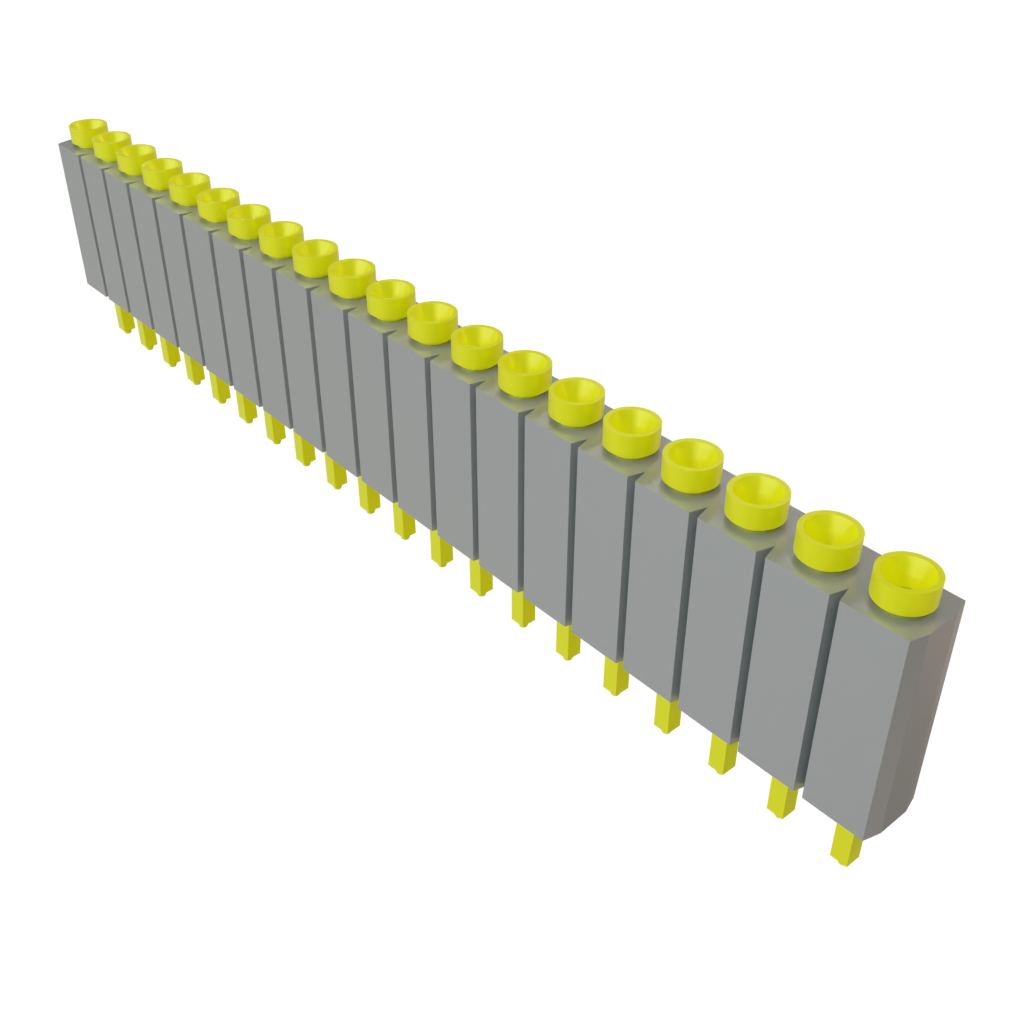

Images are for reference only
See Product Specifications

Mouser No:

200-ESS120TT03

Mfr. No:

ESS-120-TT-03

Mfr.:

Samtec

Description:

IC & Component Sockets .100 Elevated Single Row Screw Machine Socket Strip

Datasheet:

ESS-120-TT-03 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

Availability

Stock:: 0

You can still purchase this product for backorder.

An unexpected error occurred. Please try again later.
On Order:: 40

Expected 2/23/2026

5

Expected 2/25/2026
Factory Lead Time:: 2

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	3,41 €	3,41 €
	3,08 €	77,00 €
	2,86 €	143,00 €
	2,82 €	282,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	IC & Component Sockets
RoHS:
Product:	DIP / SIP Sockets
Number of Positions:	20 Position
Number of Rows:	1 Row
Type:	Precision Machined Socket Strip
Pitch:	2.54 mm
Termination Style:	Through Hole
Contact Plating:	Tin
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Series:	ESS
Packaging:	Bulk
Brand:	Samtec
Contact Material:	Beryllium Copper
Flammability Rating:	UL 94 V-0
Housing Material:	Polyester
Mounting Style:	Straight Pin
Product Type:	IC & Component Sockets
Factory Pack Quantity:	1
Subcategory:	IC & Component Sockets
Unit Weight:	1,020 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

TARIC:: 8536693000
CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99
