ERM8-035-09.0-L-DV-L-K-TR

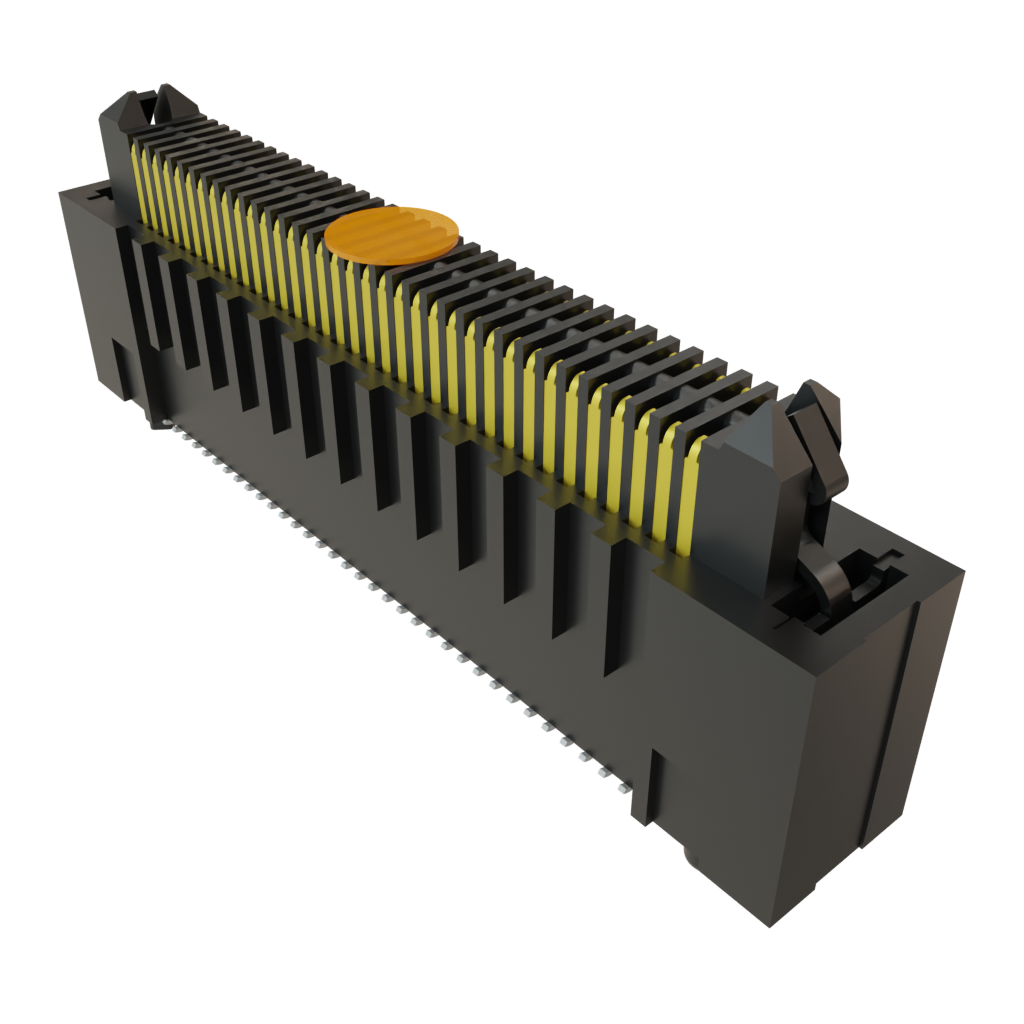

Name: Samtec ERM8-035-09.0-L-DV-L-K-TR
Brand: Samtec
SKU: 200-ERM8-3509LDVLKTR
Price: 5.84 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-ERM8-3509LDVLKTR

Mfr. No:

ERM8-035-09.0-L-DV-L-K-TR

Mfr.:

Samtec

Description:

Board to Board & Mezzanine Connectors 0.80 mm Edge Rate Rugged High Speed Terminal

Datasheet:

ERM8-035-09.0-L-DV-L-K-TR Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec ERM8-035-09.0-L-DV-L-K-TR

In Stock: 90

Stock:: 90 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 10 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	5,84 €	5,84 €
	5,28 €	52,80 €
	4,99 €	124,75 €
	4,83 €	241,50 €
Full Reel (Order in multiples of 125)
	4,30 €	537,50 €
	3,97 €	1.985,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Headers
Number of Positions:	70 Position
Pitch:	0.8 mm (0.031 in)
Number of Rows:	2 Row
Termination Style:	Solder
Mounting Angle:	Vertical
Stack Height:	14 mm, 16 mm, 18 mm
Maximum Data Rate:	56 Gbps
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Phosphor Bronze
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	ERM8
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Samtec
Flammability Rating:	UL 94 V-0
Mounting Style:	SMD/SMT
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	125
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	Edge Rate
Unit Weight:	1,711 g
