ERF8-025-05.0-S-DV-L-TR

Name: Samtec ERF8-025-05.0-S-DV-L-TR
Brand: Samtec
SKU: 200-ERF8025050SDVLTR
Price: 5.31 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-ERF8025050SDVLTR

Mfr. No:

ERF8-025-05.0-S-DV-L-TR

Mfr.:

Samtec

Description:

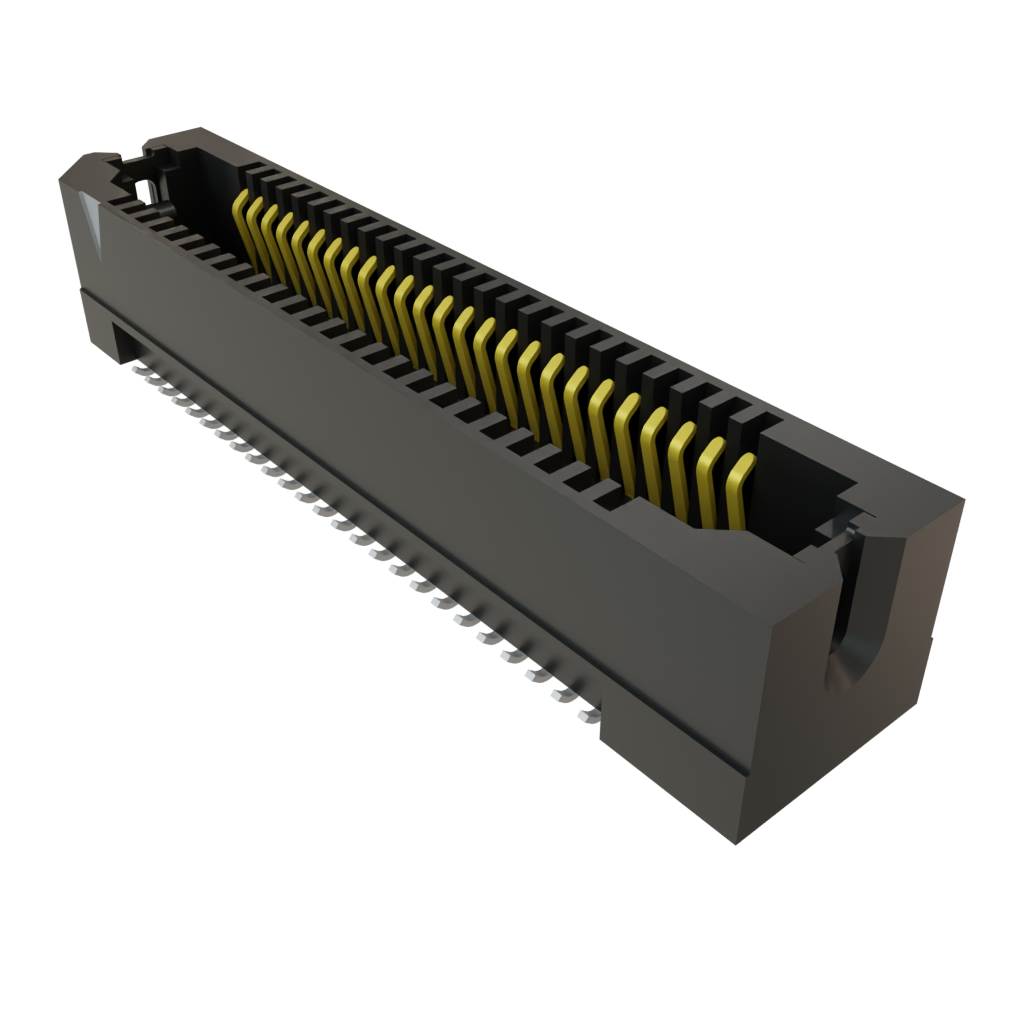

Board to Board & Mezzanine Connectors 0.80 mm Edge Rate Rugged High Speed Socket

Datasheet:

ERF8-025-05.0-S-DV-L-TR Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec ERF8-025-05.0-S-DV-L-TR

In Stock: 355

Stock:: 355 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 3 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	5,31 €	5,31 €
	4,86 €	48,60 €
	4,54 €	113,50 €
	4,48 €	224,00 €
	3,96 €	396,00 €
Full Reel (Order in multiples of 375)
	3,96 €	1.485,00 €
	3,64 €	2.730,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Sockets
Number of Positions:	50 Position
Pitch:	0.8 mm (0.031 in)
Number of Rows:	2 Row
Termination Style:	Solder
Mounting Angle:	Vertical
Stack Height:	7 mm, 8 mm, 10 mm, 13 mm, 14 mm
Maximum Data Rate:	56 Gbps
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Phosphor Bronze
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	ERF8
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MY
Flammability Rating:	UL 94 V-0
Mounting Style:	SMD/SMT
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	375
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	Edge Rate
Unit Weight:	2,189 g
