ERF8-013-05.0-S-DV-L-TR

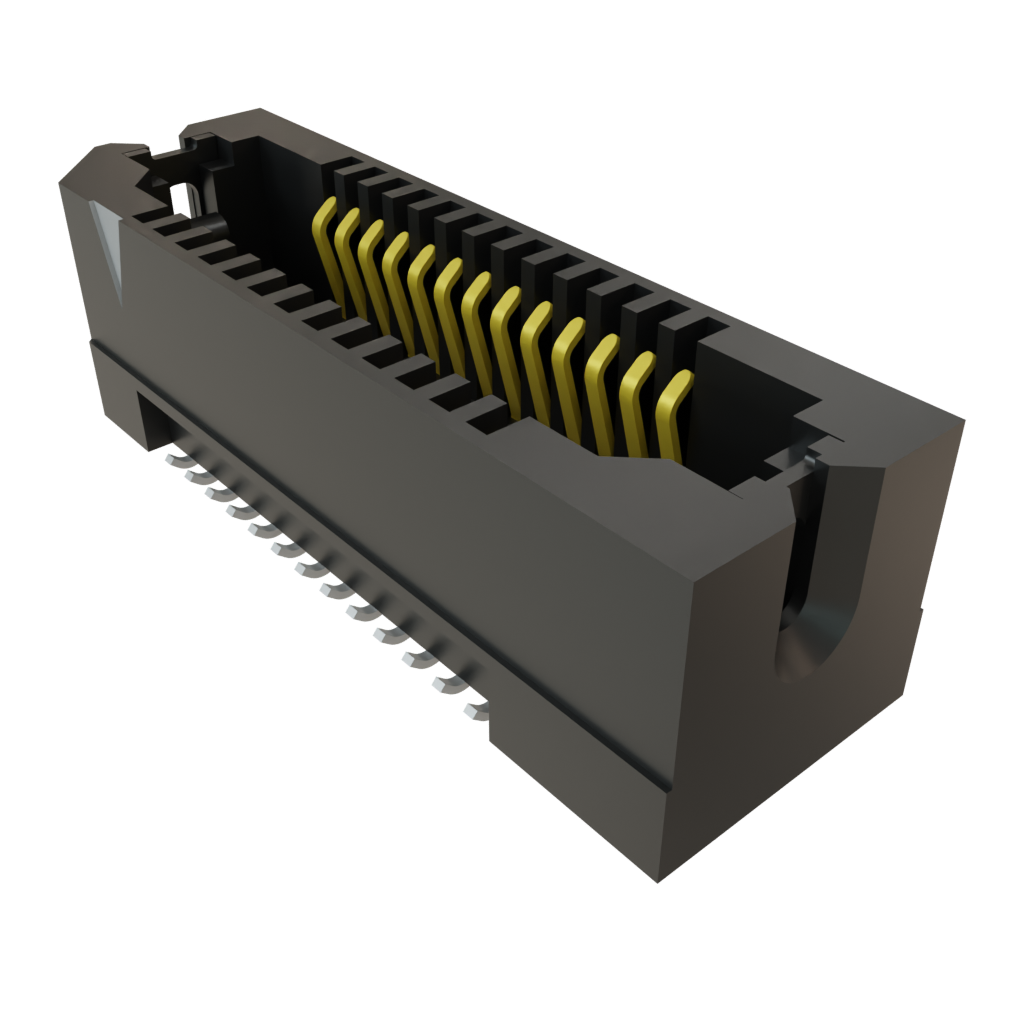

Name: Samtec ERF8-013-05.0-S-DV-L-TR
Brand: Samtec
SKU: 200-ERF8013050SDVLTR
Price: 4.68 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-ERF8013050SDVLTR

Mfr. No:

ERF8-013-05.0-S-DV-L-TR

Mfr.:

Samtec

Description:

Board to Board & Mezzanine Connectors 0.80 mm Edge Rate Rugged High Speed Socket

Datasheet:

ERF8-013-05.0-S-DV-L-TR Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec ERF8-013-05.0-S-DV-L-TR

In Stock: 836

Stock:: 836 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 1 Week Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Packaging:

Full Reel (Order in multiples of 500)

Cut Tape

MouseReel™ (+5,00 €)

Pricing (EUR)

Qty.	Unit Price	Ext. Price
Cut Tape / MouseReel™ ^†
	4,68 €	4,68 €
	4,18 €	104,50 €
	3,84 €	192,00 €
	3,74 €	374,00 €
Full Reel (Order in multiples of 500)
	3,31 €	1.655,00 €
	3,06 €	3.060,00 €

† A MouseReel™ fee of 5,00 € will be added and calculated in your basket. All MouseReel™ orders are non-cancellable and non-returnable. ↩

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Sockets
Number of Positions:	26 Position
Pitch:	0.8 mm (0.031 in)
Number of Rows:	2 Row
Termination Style:	Solder
Mounting Angle:	Vertical
Stack Height:	7 mm, 8 mm, 10 mm, 13 mm, 14 mm
Maximum Data Rate:	56 Gbps
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Phosphor Bronze
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	ERF8
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MY
Flammability Rating:	UL 94 V-0
Mounting Style:	SMD/SMT
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	500
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	Edge Rate
Unit Weight:	1,558 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Test Report (PDF)

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99
