ERF6-30-03.5-L-DV-A-K-TR

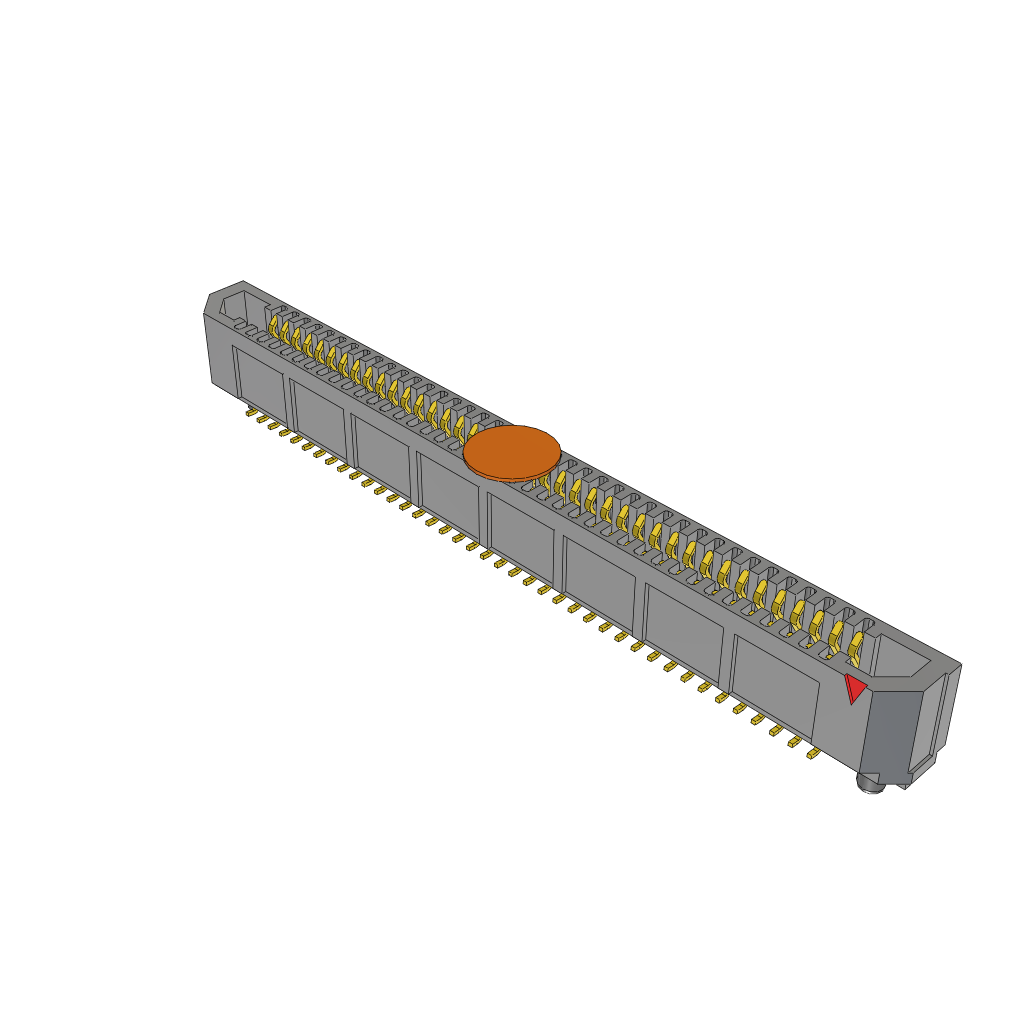

Name: Samtec ERF6-30-03.5-L-DV-A-K-TR
Brand: Samtec
SKU: 200-ERF630035LDVAKTR
Price: 5.91 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-ERF630035LDVAKTR

Mfr. No:

ERF6-30-03.5-L-DV-A-K-TR

Mfr.:

Samtec

Description:

Board to Board & Mezzanine Connectors 0.635 mm Edge Rate Rugged High Speed Socket

Datasheet:

ERF6-30-03.5-L-DV-A-K-TR Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec ERF6-30-03.5-L-DV-A-K-TR

In Stock: 858

Stock:: 858 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 1 Week Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	5,91 €	5,91 €
	5,34 €	133,50 €
	4,96 €	248,00 €
	4,73 €	473,00 €
Full Reel (Order in multiples of 675)
	3,93 €	2.652,75 €
	3,84 €	5.184,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Sockets
Number of Positions:	60 Position
Pitch:	0.635 mm (0.025 in)
Number of Rows:	2 Row
Termination Style:	Solder
Mounting Angle:	Vertical
Stack Height:	5 mm
Maximum Data Rate:	56 Gbps
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Copper Alloy
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	ERF6
Packaging:	Reel
Packaging:	Cut Tape
Application:	High-Cycle, High-Speed
Brand:	Samtec
Flammability Rating:	UL 94 V-0
Mounting Style:	SMD/SMT
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	675
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	Edge Rate

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Test Report (PDF)

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99
