EHF-117-01-F-D-SM-LC

Name: Samtec EHF-117-01-F-D-SM-LC
Brand: Samtec
SKU: 200-EHF11701FDSMLC
Price: 5.46 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-EHF11701FDSMLC

Mfr. No:

EHF-117-01-F-D-SM-LC

Mfr.:

Samtec

Description:

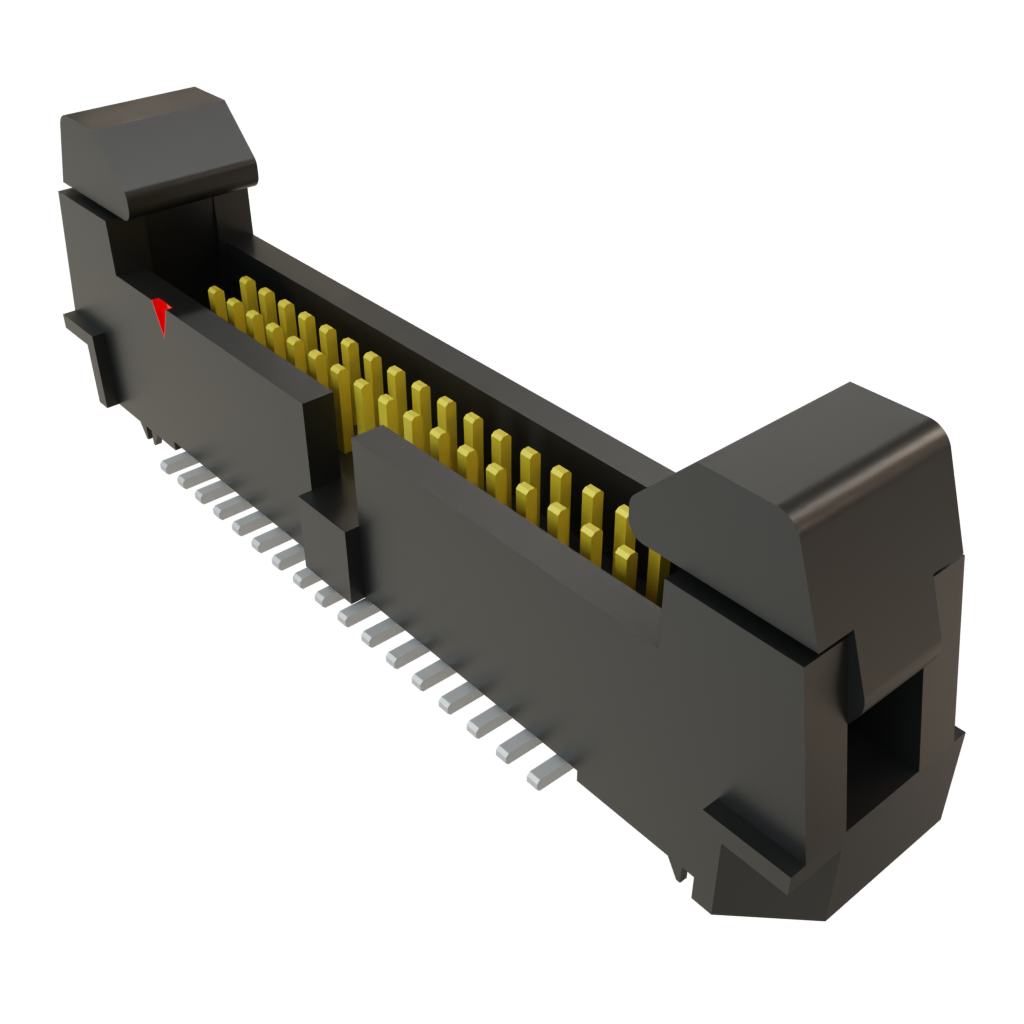

Headers & Wire Housings .050 Shrouded IDC Header with Ejectors
