DW-03-15-T-S-375

Name: Samtec DW-03-15-T-S-375
Brand: Samtec
SKU: 200-DW0315TS375
Price: 0.25 EUR
Availability: InStock

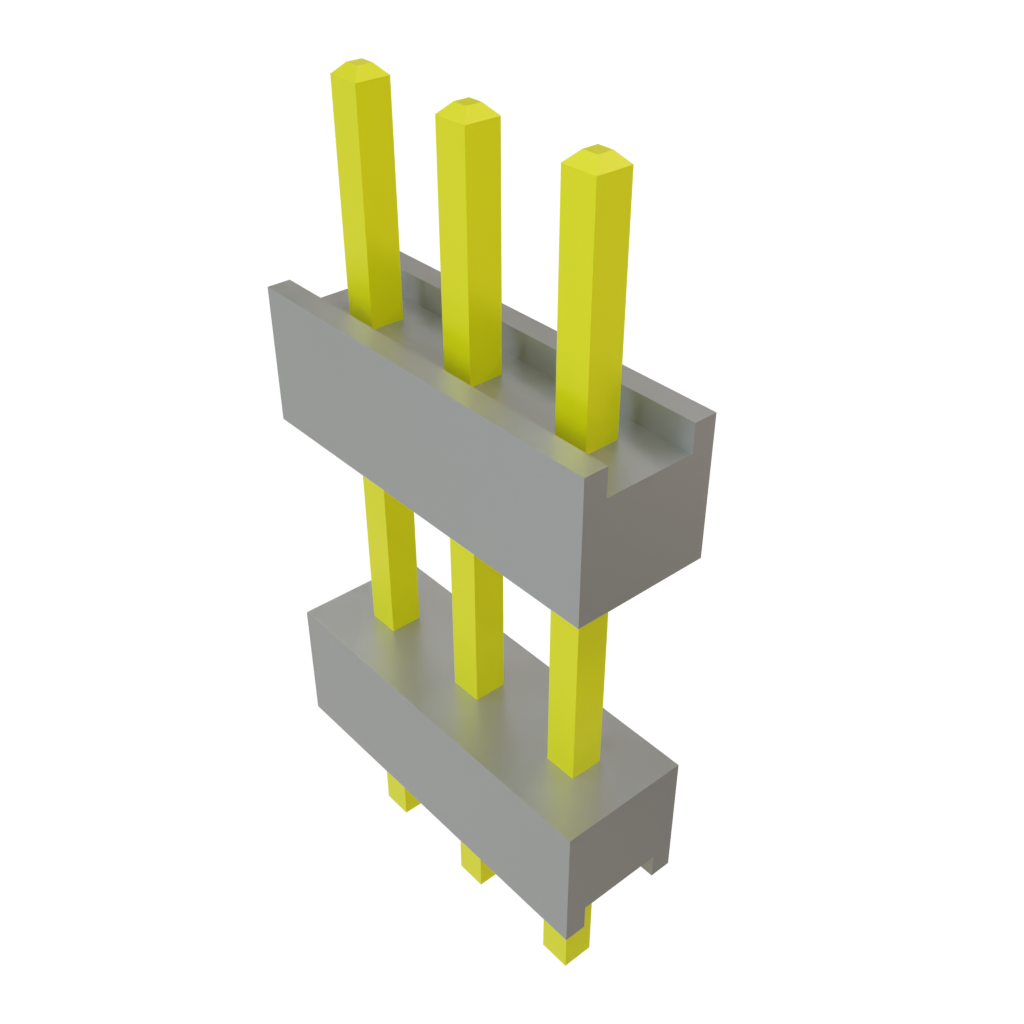

Images are for reference only
See Product Specifications

Mouser No:

200-DW0315TS375

Mfr. No:

DW-03-15-T-S-375

Mfr.:

Samtec

Description:

Board to Board & Mezzanine Connectors Flexible Board Stacking Header with Fixed Tail Length

Datasheet:

DW-03-15-T-S-375 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 164

Stock:: 164 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 1 Week Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,258 €	0,26 €
	0,215 €	10,75 €
	0,172 €	17,20 €
	0,129 €	64,50 €
	0,124 €	124,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Headers
Number of Positions:	3 Position
Pitch:	2.54 mm (0.1 in)
Number of Rows:	1 Row
Termination Style:	Solder
Mounting Angle:	Vertical
Stack Height:	0.375 in
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 105 C
Contact Plating:	Tin
Contact Material:	Phosphor Bronze
Housing Material:	Polyester
Series:	DW
Packaging:	Bulk
Application:	Board-to-Board, Cable
Brand:	Samtec
Flammability Rating:	UL 94 V-0
Mounting Style:	Throuh Hole
Factory Pack Quantity:	1
Termination Post Length:	2.79 mm
Tradename:	Flex Stack
Unit Weight:	53,460 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Test Report (PDF)

TARIC:: 8536693000
CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Flexible Stacking Connectors

Samtec Flex Stacking Board Connectors feature a large variety of board-to-board connectors with design flexibility. These Samtec board-to-board connector systems are available in a variety of pitches, densities, stack heights, orientations, and other standard or modified options, making it easy to find the right connector for any application. Flex-Stack options include one-piece, low profile pass-through, elevated, hermaphroditic, shrouded, coplanar, parallel, and perpendicular. Post heights are adjustable in increments of 0.005” (0.13mm).
