CLT-116-01-F-D

Name: Samtec CLT-116-01-F-D
Brand: Samtec
SKU: 200-CLT11601FD
Price: 2.62 EUR
Availability: InStock

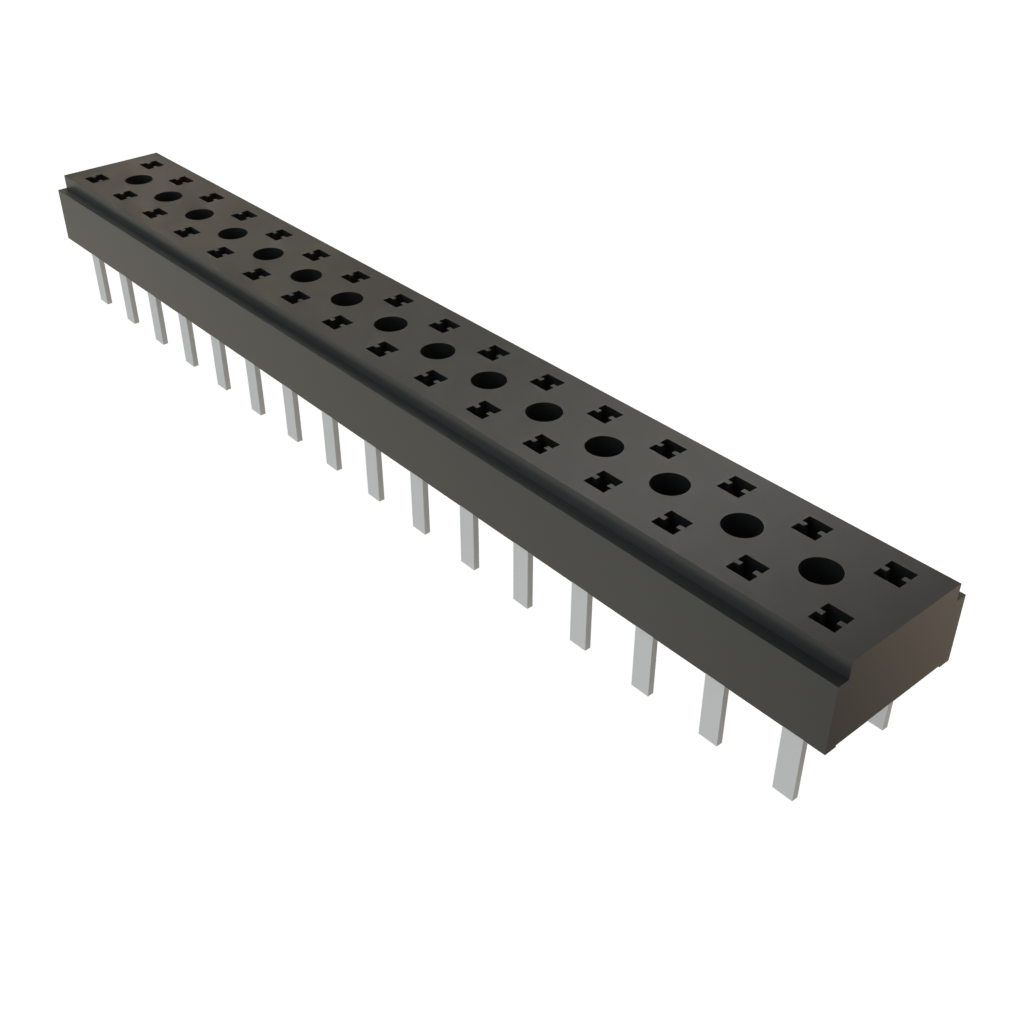

Images are for reference only
See Product Specifications

Mouser No:

200-CLT11601FD

Mfr. No:

CLT-116-01-F-D

Mfr.:

Samtec

Description:

Headers & Wire Housings Low Profile Dual-Wipe Socket

Datasheet:

CLT-116-01-F-D Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec CLT-116-01-F-D

In Stock: 468

Stock:: 468 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 1 Week Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	2,62 €	2,62 €
	2,42 €	130,68 €
	2,33 €	251,64 €
	2,15 €	1.083,60 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Sockets
Number of Positions:	32 Position
Pitch:	2 mm (0.079 in)
Number of Rows:	2 Row
Mounting Style:	Through Hole
Termination Style:	Solder Pin
Mounting Angle:	Straight
Contact Plating:	Gold
Termination Post Length:	2.16 mm (0.085 in)
Series:	CLT
Tradename:	Tiger Claw
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Tube
Brand:	Samtec
Contact Material:	Phosphor Bronze
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MY
Current Rating:	4.1 A
Flammability Rating:	UL 94 V-0
Housing Material:	Liquid Crystal Polymer (LCP)
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	18
Subcategory:	Headers & Wire Housings
Unit Weight:	278,400 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Test Report (PDF)

TARIC:: 8536693000
CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Tiger Claw™ CLM, CLP & CLT Dual Wipe Socket Strips

Samtec Tiger Claw™ Dual Wipe Socket Strips are available in 1.00mm, 1.27mm, and 2.00mm pitches and feature a low-profile Tiger Claw contact system. These rugged sockets are insulated with black liquid crystal polymer and withstand 100 mating cycles. Samtec Tiger Claw socket strips have a -55°C to +125°C operating temperature and are RoHS compliant.
