CLM-111-02-L-D-A-P

Name: Samtec CLM-111-02-L-D-A-P
Brand: Samtec
SKU: 200-CLM11102LDAP
Price: 4.42 EUR
Availability: InStock

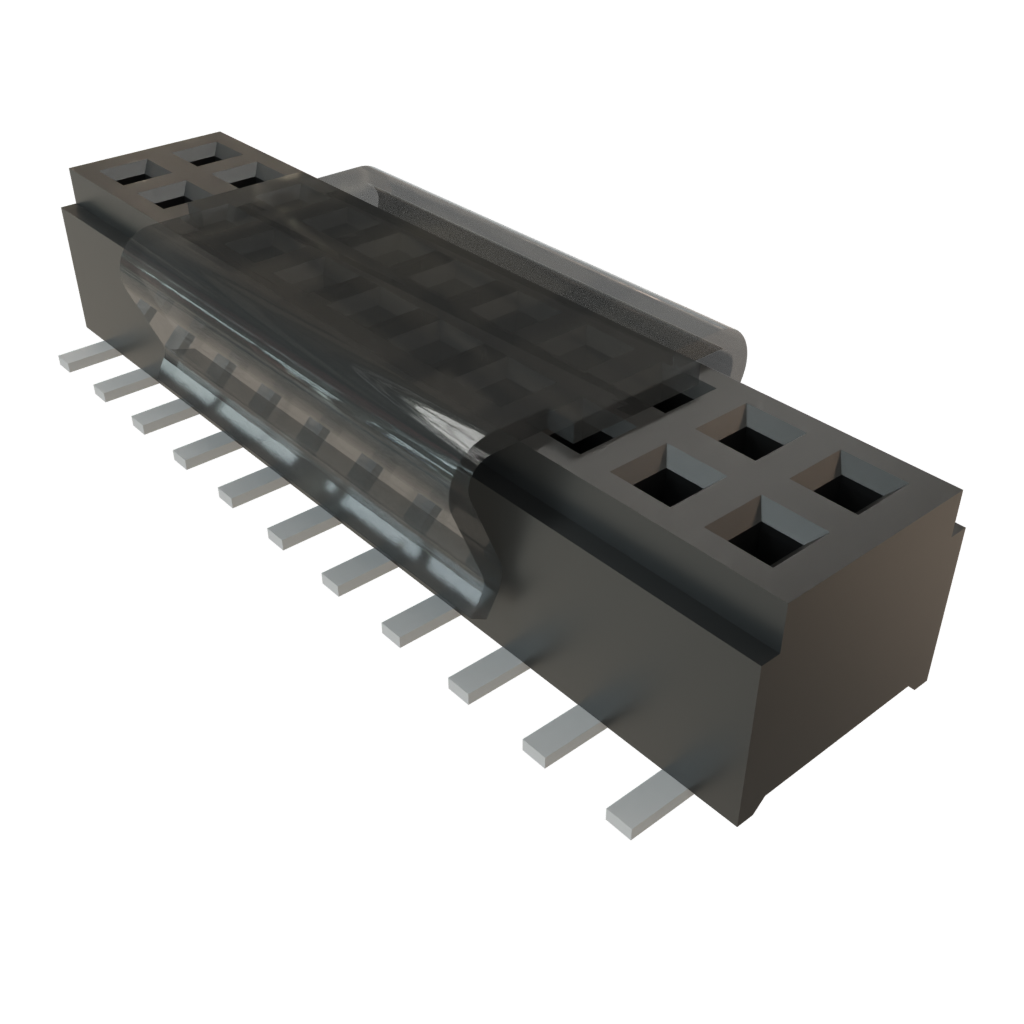

Images are for reference only
See Product Specifications

Mouser No:

200-CLM11102LDAP

Mfr. No:

CLM-111-02-L-D-A-P

Mfr.:

Samtec

Description:

Board to Board & Mezzanine Connectors Low Profile Dual-Wipe Socket

Datasheet:

CLM-111-02-L-D-A-P Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec CLM-111-02-L-D-A-P

In Stock: 85

Stock:: 85 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 10 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	4,42 €	4,42 €
	4,14 €	103,50 €
	3,90 €	195,00 €
	3,45 €	345,00 €
	3,19 €	1.595,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Sockets
Number of Positions:	22 Position
Pitch:	1 mm (0.039 in)
Number of Rows:	2 Row
Termination Style:	Solder
Mounting Angle:	Vertical
Current Rating:	3.1 A
Voltage Rating:	270 VAC
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Phosphor Bronze
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	CLM
Packaging:	Tube
Brand:	Samtec
Mounting Style:	SMD/SMT
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	50
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	Tiger Claw
Unit Weight:	55,660 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Test Report (PDF)

TARIC:: 8536693000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Flexible Stacking Connectors

Samtec Flex Stacking Board Connectors feature a large variety of board-to-board connectors with design flexibility. These Samtec board-to-board connector systems are available in a variety of pitches, densities, stack heights, orientations, and other standard or modified options, making it easy to find the right connector for any application. Flex-Stack options include one-piece, low profile pass-through, elevated, hermaphroditic, shrouded, coplanar, parallel, and perpendicular. Post heights are adjustable in increments of 0.005” (0.13mm).
