CLM-108-02-F-D-P-TR

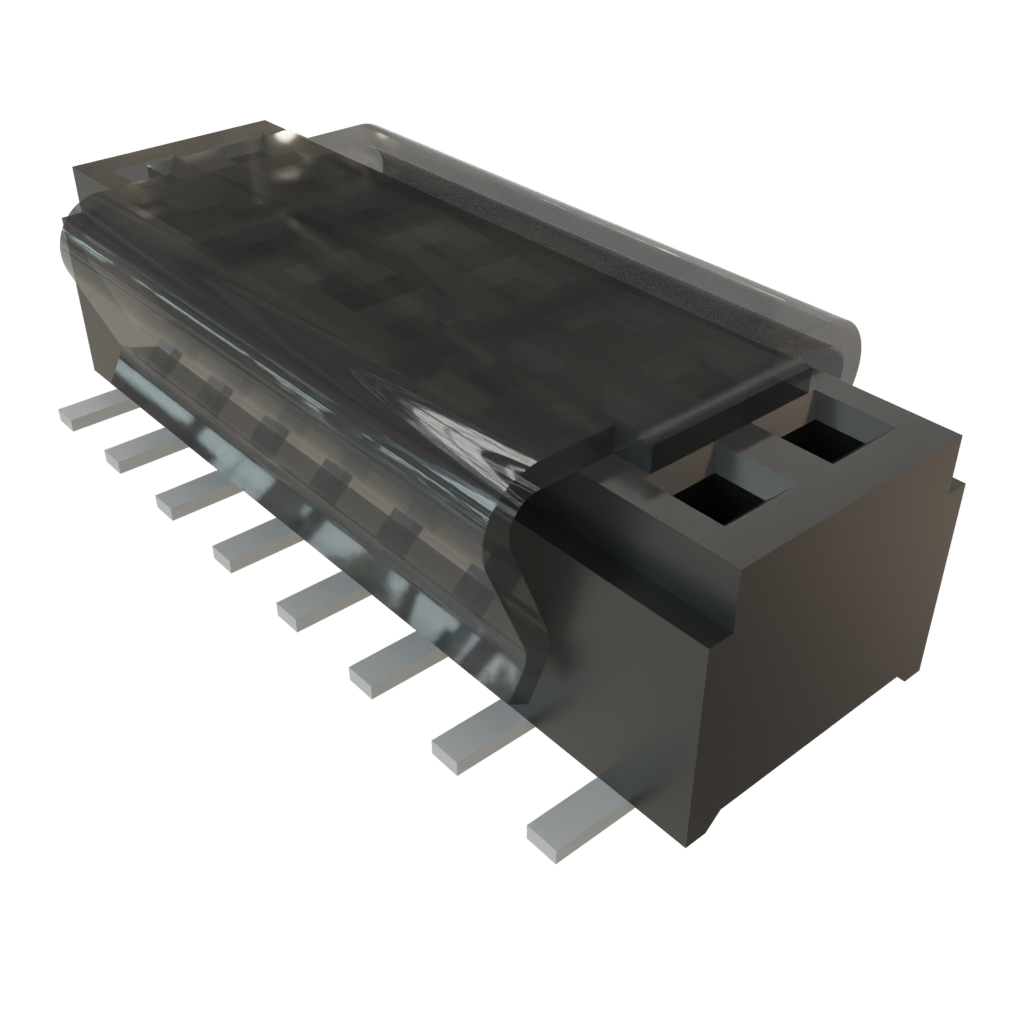

Name: Samtec CLM-108-02-F-D-P-TR
Brand: Samtec
SKU: 200-CLM10802FDPTR
Price: 3.23 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-CLM10802FDPTR

Mfr. No:

CLM-108-02-F-D-P-TR

Mfr.:

Samtec

Description:

Board to Board & Mezzanine Connectors Low Profile Dual-Wipe Socket

Datasheet:

CLM-108-02-F-D-P-TR Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec CLM-108-02-F-D-P-TR

In Stock: 1.902

Stock:: 1.902 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 2 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	3,23 €	3,23 €
	2,73 €	136,50 €
	2,34 €	234,00 €
	1,94 €	970,00 €
	1,78 €	1.780,00 €
Full Reel (Order in multiples of 1500)
	1,78 €	2.670,00 €
	1,69 €	7.605,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Sockets
Number of Positions:	16 Position
Pitch:	1 mm (0.039 in)
Number of Rows:	2 Row
Termination Style:	Solder
Mounting Angle:	Vertical
Current Rating:	3.1 A
Voltage Rating:	270 VAC
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Phosphor Bronze
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	CLM
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Samtec
Mounting Style:	SMD/SMT
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	1500
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	Tiger Claw
Unit Weight:	40,480 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Test Report (PDF)

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Flexible Stacking Connectors

Samtec Flex Stacking Board Connectors feature a large variety of board-to-board connectors with design flexibility. These Samtec board-to-board connector systems are available in a variety of pitches, densities, stack heights, orientations, and other standard or modified options, making it easy to find the right connector for any application. Flex-Stack options include one-piece, low profile pass-through, elevated, hermaphroditic, shrouded, coplanar, parallel, and perpendicular. Post heights are adjustable in increments of 0.005” (0.13mm).
