CC79R-2630-01-F

Name: Samtec CC79R-2630-01-F
Brand: Samtec
SKU: 200-CC79R-2630-01-F
Price: 0.16 EUR
Availability: InStock

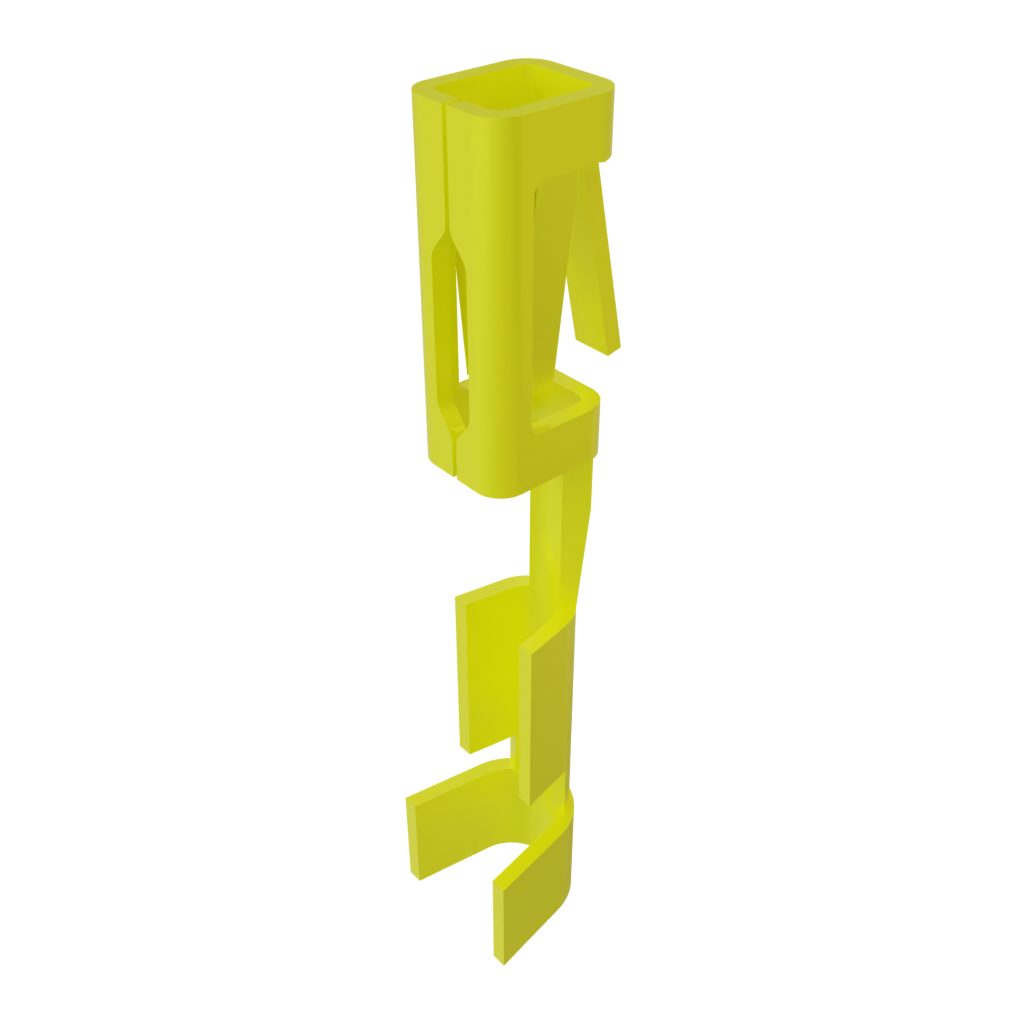

Images are for reference only
See Product Specifications

Mouser No:

200-CC79R-2630-01-F

Mfr. No:

CC79R-2630-01-F

Mfr.:

Samtec

Description:

Headers & Wire Housings .100 Mini Mate Crimp Contact, Reel Packaging

Datasheet:

CC79R-2630-01-F Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec CC79R-2630-01-F

In Stock: 12.862

Stock:: 12.862 Can Dispatch Immediately

An unexpected error occurred. Please try again later.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,163 €	0,16 €
	0,121 €	1,21 €
	0,108 €	10,80 €
	0,103 €	51,50 €
	0,099 €	99,00 €
	0,092 €	230,00 €
Full Reel (Order in multiples of 12000)
	0,072 €	864,00 €
	0,069 €	1.656,00 €

Alternative Packaging

Mfr. Part No.:

CC79L-2630-01-F

Packaging:

Bag

Availability:

In Stock

Price:

0,14 €

Min:

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Contacts
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Contact Gender:	Socket (Female)
Contact Plating:	Gold
Series:	CC79
Tradename:	Mini Mate
Wire Gauge:	30 AWG to 28 AWG
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Samtec
Contact Material:	Copper Alloy
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	12000
Subcategory:	Headers & Wire Housings
Unit Weight:	294,833 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

CC79R-2630-01-F Datasheet (PDF)

Images


Specification Sheets

Technical Resources

Dimensional Drawing, Footprint, and Part Number Configuration

Compliance Codes

CNHTS:: 8536901100
USHTS:: 8536904000
ECCN:: EAR99

Origin Classifications

Country of Origin:: United States
Assembly Country of Origin:: Not available
Country of Diffusion:: Not available

The country is subject to change at the time of shipment.

Mini Mate .100" (2.54mm) Discrete Wire Solutions

Samtec Mini Mate .100" (2.54mm) Discrete Wire Solutions include a variety of housings and contacts to meet a broad range of design needs with current ratings of up to 3.3A. The discrete wire connectors from Samtec are available in cable-to-board, cable-to-cable, and cable-to-panel options. Rugged individually shrouded contacts provide reliability in harsh environments. The fully polarized single- and double-row systems of up to 50 pins also include metal or plastic latch options.
