BTH-120-01-L-D-A-K

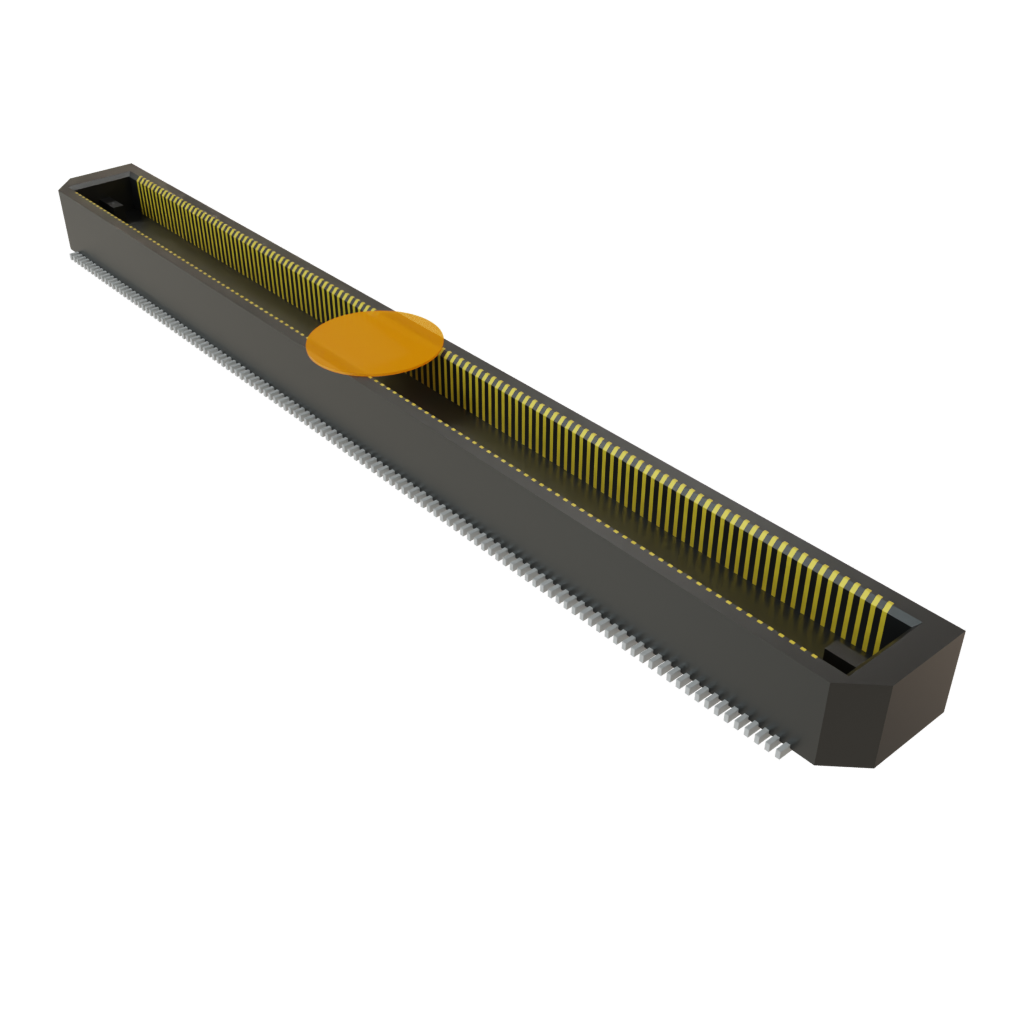

Name: Samtec BTH-120-01-L-D-A-K
Brand: Samtec
SKU: 200-BTH12001LDAK
Price: 5.74 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-BTH12001LDAK

Mfr. No:

BTH-120-01-L-D-A-K

Mfr.:

Samtec

Description:

Board to Board & Mezzanine Connectors 0.50 mm Basic Blade & Beam Terminal Strip

Datasheet:

BTH-120-01-L-D-A-K Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec BTH-120-01-L-D-A-K

In Stock: 48

Stock:: 48 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 2 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	5,74 €	5,74 €
	5,20 €	312,00 €
	4,86 €	583,20 €
	4,49 €	2.155,20 €

Alternative Packaging

Mfr. Part No.:

BTH-120-01-L-D-A-K-TR

Packaging:

Reel, Cut Tape

Availability:

In Stock

Price:

6,32 €

Min:

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Headers
Number of Positions:	240 Position
Pitch:	0.5 mm (0.02 in)
Number of Rows:	2 Row
Termination Style:	Solder Pin
Mounting Angle:	Vertical
Stack Height:	5 mm
Current Rating:	2 A
Voltage Rating:	175 VAC
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Phosphor Bronze
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	BTH
Packaging:	Tray
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MY
Flammability Rating:	UL 94 V-0
Mounting Style:	Mounting Peg
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	30
Subcategory:	Board to Board & Mezzanine Connectors
Unit Weight:	1,512 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Test Report (PDF)

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99
