B1SDS-10-N-CS

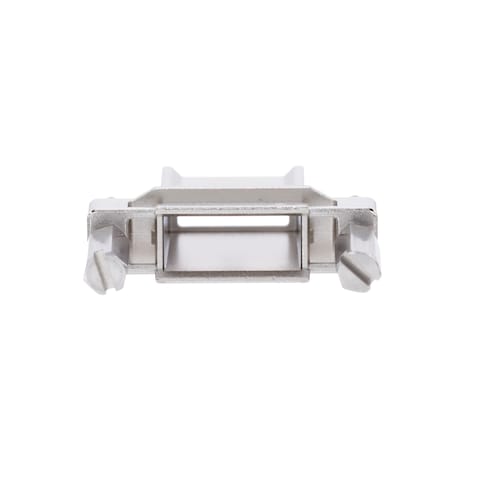

Name: Samtec B1SDS-10-N-CS
Brand: Samtec
SKU: 200-B1SDS-10-N-CS
Price: 18.83 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-B1SDS-10-N-CS

Mfr. No:

B1SDS-10-N-CS

Mfr.:

Samtec

Description:

I/O Connectors URSA(TM) I/O Metal Shell for Cable Socket Housing

Lifecycle:

Factory Special Order:

Obtain a quote to verify the current price, lead-time and ordering requirements of the manufacturer.

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec B1SDS-10-N-CS

In Stock: 21

Stock:: 21 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 1 Week Estimated factory production time for quantities greater than shown.

Quantities greater than 21 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	18,83 €	18,83 €
	16,01 €	160,10 €
25	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	I/O Connectors
Product:	I/O Connectors
Number of Positions:	10 Position
Pitch:	1 mm
Voltage Rating:	253 VAC
Contact Plating:	Gold
Mounting Style:	PCB Mount
Termination Style:	Cable
Mounting Angle:	Vertical
Series:	B1SDS
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Bag
Brand:	Samtec
Contact Material:	Beryllium Copper
Current Rating:	3.8 A
Housing Material:	Zinc
Insulation Material:	Liquid Crystal Polymer (LCP)
Product Type:	I/O Connectors
Factory Pack Quantity:	1
Subcategory:	I/O Connectors
Tradename:	URSA

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

This functionality requires JavaScript to be enabled.

Compliance Codes

USHTS:: 8538908180
JPHTS:: 853890000
ECCN:: EAR99

Origin Classifications

Country of Origin:: United States
Assembly Country of Origin:: Not available
Country of Diffusion:: Not available

The country is subject to change at the time of shipment.

B1SDS I/O Metal Shell for Cable Socket Housings

Samtec B1SDS I/O Metal Shell for Cable Socket Housings are ideal for use with IBT1 cable socket housing and CC508 crimp contact. These housings include captive screws for cable-to-cable and cable-to-board applications. The EMI shielding limits signal degradation and optimizes performance. The B1SDS I/O housings come with a zinc alloy as shielding material, beryllium copper as contact material, and liquid crystal polymer as insulator material.

URSA® Ultra Rugged I/O System

Samtec URSA® Ultra Rugged I/O System features a hyperboloid-type contact for maximum reliability and high mating cycles. This cable-to-cable and cable-to-board solution achieves four points of contact to create a reliable connection in a small form factor. This design results in extreme density with up to 1450 total I/Os in a single 1RU panel (29 cables at 50 total I/Os each). The system also provides EMI shielding to minimize signal degradation while optimizing performance. Samtec URSA Ultra Rugged I/O System comprises a full range of products, including cable assemblies, connectors, housings, crimp contacts, and crimp terminals. The URSA lineup is ideal for military and aerospace applications, submersibles, and harsh environments.
