APM6-020-06.5-L-04-2-A-TR

Name: Samtec APM6-020-06.5-L-04-2-A-TR
Brand: Samtec
SKU: 200-APM6020065L42ATR
Price: 20.22 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-APM6020065L42ATR

Mfr. No:

APM6-020-06.5-L-04-2-A-TR

Mfr.:

Samtec

Description:

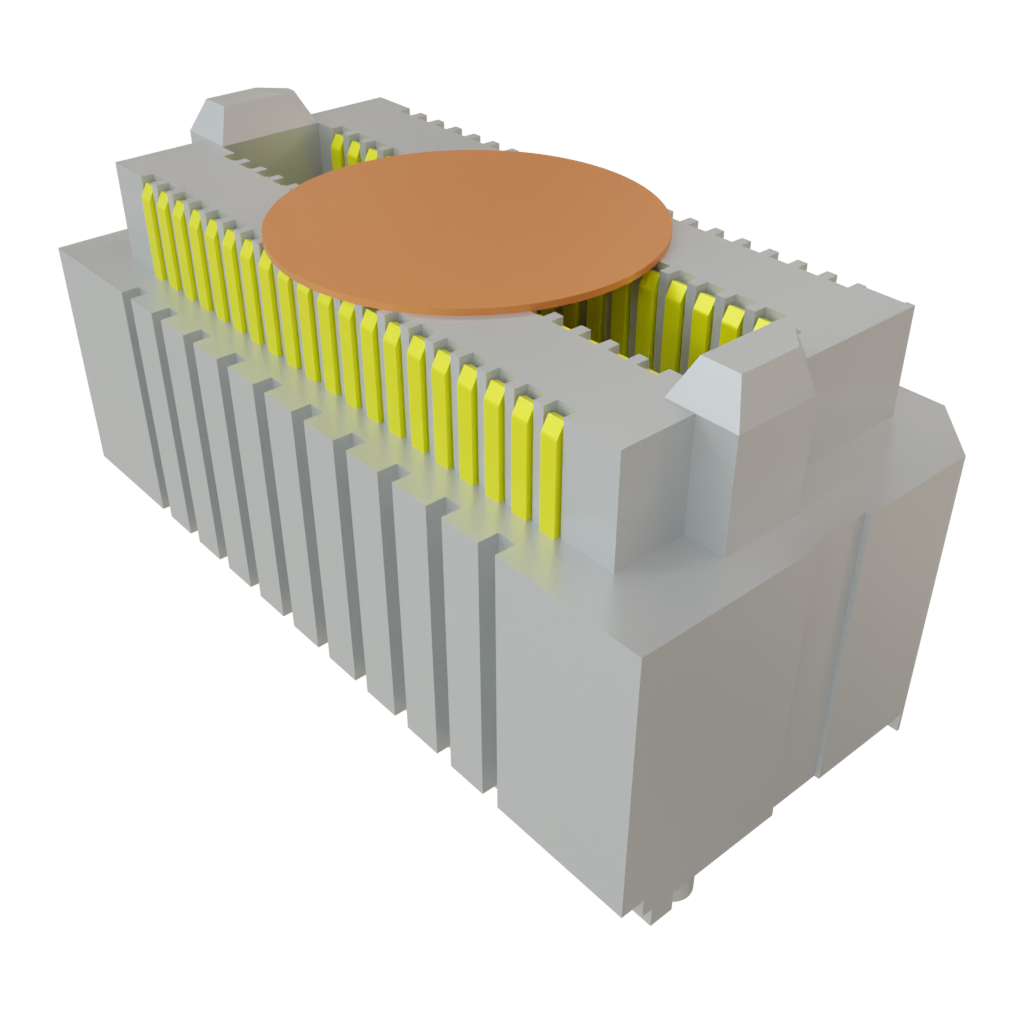

Board to Board & Mezzanine Connectors 0.635 mm Pitch AcceleRate(R) HP High-Performance Array Terminal

Datasheet:

APM6-020-06.5-L-04-2-A-TR Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec APM6-020-06.5-L-04-2-A-TR

In Stock: 28

Stock:: 28 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 1 Week Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	20,22 €	20,22 €
	17,31 €	173,10 €
	16,22 €	405,50 €
	15,85 €	792,50 €
	14,20 €	1.420,00 €
Full Reel (Order in multiples of 175)
	13,47 €	2.357,25 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Headers
Number of Positions:	80 Position
Pitch:	0.635 mm (0.025 in)
Number of Rows:	4 Row
Termination Style:	Solder Balls
Mounting Angle:	Straight
Stack Height:	10 mm
Current Rating:	1.34 A
Voltage Rating:	155 VAC
Maximum Data Rate:	56 Gbps
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Copper Alloy
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	APM6
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Samtec
Data Rate:	56 Gbps
Mounting Style:	SMD/SMT
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	175
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	Accelerate HP
