STW70N60DM6-4

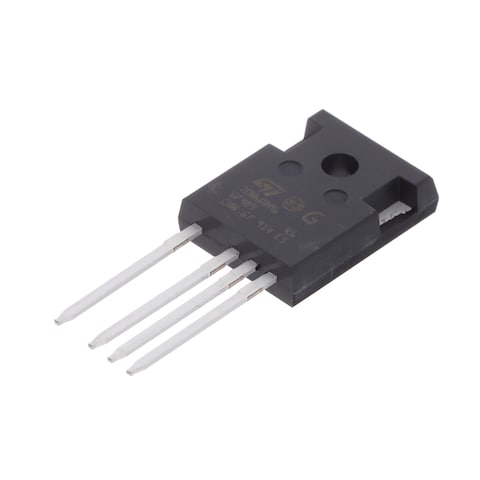

Name: STMicroelectronics STW70N60DM6-4
Brand: STMicroelectronics
SKU: 511-STW70N60DM6-4
Price: 9.37 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

511-STW70N60DM6-4

Mfr. No:

STW70N60DM6-4

Mfr.:

STMicroelectronics

Description:

MOSFETs N-channel 600 V, 36 mOhm typ., 62 A MDmesh DM6 Power MOSFET in a TO247-4 package

Complete Your Design

Datasheet:

STW70N60DM6-4 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about STMicroelectronics STW70N60DM6-4

In Stock: 25

Stock:: 25 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 18 Weeks Estimated factory production time for quantities greater than shown.

Quantities greater than 25 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	9,37 €	9,37 €
	6,30 €	63,00 €
	5,31 €	531,00 €
	4,94 €	2.964,00 €
	4,62 €	5.544,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	STMicroelectronics
Product Category:	MOSFETs
RoHS:
Technology:	Si
Mounting Style:	Through Hole
Package/Case:	TO-247-4
Transistor Polarity:	N-Channel
Number of Channels:	1 Channel
Vds - Drain-Source Breakdown Voltage:	600 V
Id - Continuous Drain Current:	62 A
Rds On - Drain-Source Resistance:	42 mOhms
Vgs - Gate-Source Voltage:	- 25 V, 25 V
Vgs th - Gate-Source Threshold Voltage:	4.75 V
Qg - Gate Charge:	99 nC
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 150 C
Pd - Power Dissipation:	390 W
Channel Mode:	Enhancement
Tradename:	MDmesh
Packaging:	Tube
Brand:	STMicroelectronics
Configuration:	Single
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Fall Time:	11 ns
Product Type:	MOSFETs
Rise Time:	15 ns
Series:	STW70N60DM2
Factory Pack Quantity:	600
Subcategory:	Transistors
Transistor Type:	1 N-Channel
Typical Turn-Off Delay Time:	100 ns
Typical Turn-On Delay Time:	27 ns
Unit Weight:	6 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

STW70N60DM6-4 Datasheet (PDF)

TARIC:: 8541290000
CNHTS:: 8541290000
USHTS:: 8541290065
ECCN:: EAR99

MDmesh™ M6 MOSFETs

STMicroelectronics MDmesh™ M6 MOSFETs combine a low gate charge (Q_g) with an optimised capacitance profile to target high efficiency on new topologies in power conversion applications. The super-junction MDmesh M6 series offers extremely high-efficiency performance resulting in increased power density and a low gate charge for high frequencies. The M6 series MOSFETs have a breakdown voltage ranging from 600 to 700V. They are available in a wide range of packaging options, including a TO-Leadless (TO-LL) package solution, allowing efficient thermal management. The devices include a wide range of operating voltages for industrial applications, including chargers, adapters, silver box modules, LED lighting, telecoms, servers, and solar.
