STTH25M06FP

Name: STMicroelectronics STTH25M06FP
Brand: STMicroelectronics
SKU: 511-STTH25M06FP
Price: 1.78 EUR
Availability: InStock

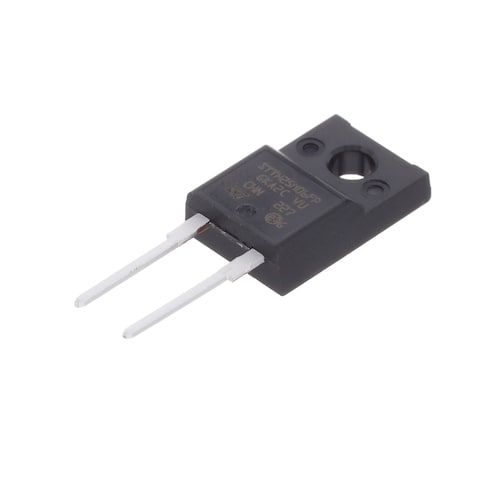

Images are for reference only
See Product Specifications

Mouser No:

511-STTH25M06FP

Mfr. No:

STTH25M06FP

Mfr.:

STMicroelectronics

Description:

Small Signal Switching Diodes 600V, 25A, Ultrafast diode

Complete Your Design

Datasheet:

STTH25M06FP Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about STMicroelectronics STTH25M06FP

In Stock: 3.312

Stock:: 3.312 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 15 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	1,78 €	1,78 €
	0,697 €	6,97 €
	0,621 €	62,10 €
	0,586 €	293,00 €
	0,54 €	540,00 €
	0,507 €	1.014,00 €
	0,487 €	2.435,00 €

Alternative Packaging

Mfr. Part No.:

STTH25M06B-TR

Packaging:

Reel, Cut Tape, MouseReel

Availability:

In Stock

Price:

1,29 €

Min:

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	STMicroelectronics
Product Category:	Small Signal Switching Diodes
RoHS:
Product:	Switching Diodes
Mounting Style:	Through Hole
Peak Reverse Voltage:	600 V
Max Surge Current:	170 A
If - Forward Current:	25 A
Configuration:	Single
Recovery Time:	25 ns
Vf - Forward Voltage:	1.6 V
Ir - Reverse Current:	60 uA
Minimum Operating Temperature:	- 65 C
Maximum Operating Temperature:	+ 175 C
Packaging:	Tube
Brand:	STMicroelectronics
Product Type:	Diodes - General Purpose, Power, Switching
Factory Pack Quantity:	1000
Subcategory:	Diodes & Rectifiers
Unit Weight:	2 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

STTH25M06FP Datasheet (PDF)

Application Notes

PCN

CNHTS:: 8541100000
USHTS:: 8541100080
ECCN:: EAR99

STTH25M06 High Voltage Diodes

STMicroelectronics STTH25M06 High-Voltage Diodes are ultrafast-recovery power rectifiers suited for boost or LLC clamping circuits working at high switching frequencies in heavy-duty applications. These diodes feature low power losses at high switching frequency operations, low leakage current, high junction temperature, and high overcurrent capability. The STMicroelectronics STTH25M06 high-voltage diodes display a robust behavior against electrostatic discharge and high overcurrent capability. Typical applications include Power Factor Correction (PFC), boost diodes, and LLC clamping diodes.

Standard Products

STMicroelectronics Standard Products are a broad range of industry-standard and drop-in replacements for the most popular general-purpose analog ICs, discretes, and serial EEPROMs. The Standard Products are manufactured to the highest quality standards with many AECQ-qualified for automotive applications. A comprehensive set of STMicroelectronics design aids, including SPICE, IBIS models, and simulation tools, is available to make adding to a design-in easy.
