STPS61H100CWY

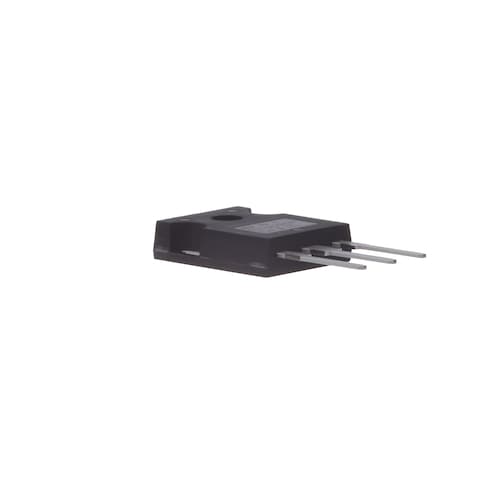

Name: STMicroelectronics STPS61H100CWY
Brand: STMicroelectronics
SKU: 511-STPS61H100CWY
Price: 3.95 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

511-STPS61H100CWY

Mfr. No:

STPS61H100CWY

Mfr.:

STMicroelectronics

Description:

Schottky Diodes & Rectifiers Automotive 100 V, 60A, low drop power Schottky rectifier

Complete Your Design

Datasheet:

STPS61H100CWY Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 434

Stock:: 434 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 45 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	3,95 €	3,95 €
	2,59 €	25,90 €
	1,94 €	194,00 €
	1,51 €	906,00 €
	1,44 €	1.728,00 €
	1,40 €	4.200,00 €
	1,39 €	7.506,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	STMicroelectronics
Product Category:	Schottky Diodes & Rectifiers
RoHS:
Product:	Schottky Rectifiers
Mounting Style:	Through Hole
Package/Case:	TO-247-3
Configuration:	Dual Anode Common Cathode
Technology:	Si
If - Forward Current:	30 A
Vrrm - Repetitive Reverse Voltage:	100 V
Vf - Forward Voltage:	630 mV
Ifsm - Forward Surge Current:	450 A
Ir - Reverse Current:	16 uA
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 175 C
Series:	STPS61H100-Y
Qualification:	AEC-Q101
Packaging:	Tube
Brand:	STMicroelectronics
Pd - Power Dissipation:	1.9 kW
Product Type:	Schottky Diodes & Rectifiers
Factory Pack Quantity:	600
Subcategory:	Diodes & Rectifiers
Vr - Reverse Voltage:	100 V

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

STPS61H100CWY Datasheet (PDF)

PCN

Compliance Codes

TARIC:: 8541100000
CNHTS:: 8542319000
USHTS:: 8541100080
ECCN:: EAR99

Origin Classifications

Country of Origin:: China
Assembly Country of Origin:: Not available
Country of Diffusion:: Not available

The country is subject to change at the time of shipment.

Standard Products

STMicroelectronics Standard Products are a broad range of industry-standard and drop-in replacements for the most popular general-purpose analog ICs, discretes, and serial EEPROMs. The Standard Products are manufactured to the highest quality standards with many AECQ-qualified for automotive applications. A comprehensive set of STMicroelectronics design aids, including SPICE, IBIS models, and simulation tools, is available to make adding to a design-in easy.
