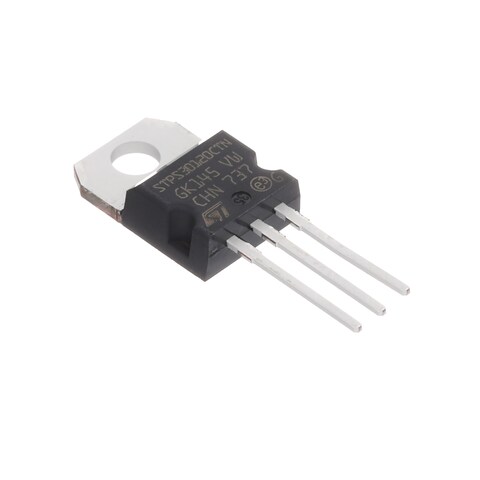

STPS30120CTN

STMicroelectronics

Images are for reference only
See Product Specifications

Mouser No:

511-STPS30120CTN

Mfr. No:

STPS30120CTN

Mfr.:

STMicroelectronics

Description:

Schottky Diodes & Rectifiers Pwr Schottky 2x15A 120V 0.57VF

Complete Your Design

Lifecycle:

End of Life:

Scheduled for obsolescence and will be discontinued by the manufacturer.

Datasheet:

STPS30120CTN Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	STMicroelectronics
Product Category:	Schottky Diodes & Rectifiers
RoHS:
REACH - SVHC:
Product:	Schottky Rectifiers
Mounting Style:	Through Hole
Configuration:	Dual Anode Common Cathode
Technology:	Si
If - Forward Current:	15 A
Vrrm - Repetitive Reverse Voltage:	120 V
Vf - Forward Voltage:	700 mV
Ifsm - Forward Surge Current:	180 A
Ir - Reverse Current:	15 uA
Maximum Operating Temperature:	+ 175 C
Series:	STPS30120C
Packaging:	Tube
Brand:	STMicroelectronics
Product Type:	Schottky Diodes & Rectifiers
Factory Pack Quantity:	1000
Subcategory:	Diodes & Rectifiers
Unit Weight:	2 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

STPS30120CTN Datasheet (PDF)

EOL

Product Discontinuation Notification (PDF)

PCN

Compliance Codes

TARIC:: 8541100000
CNHTS:: 8541100000
CAHTS:: 8541100090
USHTS:: 8541100080
JPHTS:: 854110090
KRHTS:: 8541109000
MXHTS:: 8541100101
ECCN:: EAR99

Origin Classifications

Country of Origin:: China
Assembly Country of Origin:: Not available
Country of Diffusion:: Not available

The country is subject to change at the time of shipment.

FEATURED PRODUCTS

STMICROELECTRONICS

STPSTxH100/Y Trench Power Schottky Diodes

Meets efficiency requirements at high switching frequencies.

Low Earth Orbit (LEO) Rad-Hard ICs

Combination of cost-effectiveness, radiation hardness, quality assurance and delivered quantities.

STPS10200SF 10A 200V Schottky Diode

Suitable for power supplies, especially for lighting power, server, or telecom.

STPS5S100SFY Automotive Power Schottky Rectifier

Ideal for automotive applications.

STPS6x0CSFY Automotive Power Schottky Rectifiers

30V, 40V, and 60V, dual 3A power modules in an AEC-Q101-qualified, PSMC (TO-277A) package.

In Stock: 998

Stock:: 998 Can Dispatch Immediately

An unexpected error occurred. Please try again later.

Quantities greater than 998 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	3,20 €	3,20 €
	2,08 €	20,80 €
	1,46 €	146,00 €
	1,23 €	615,00 €
	1,13 €	1.130,00 €
	1,05 €	2.100,00 €
	0,962 €	4.810,00 €
