SCTWA40N12G24AG

Name: STMicroelectronics SCTWA40N12G24AG
Brand: STMicroelectronics
SKU: 511-SCTWA40N12G24AG
Price: 15.1 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

511-SCTWA40N12G24AG

Mfr. No:

SCTWA40N12G24AG

Mfr.:

STMicroelectronics

Description:

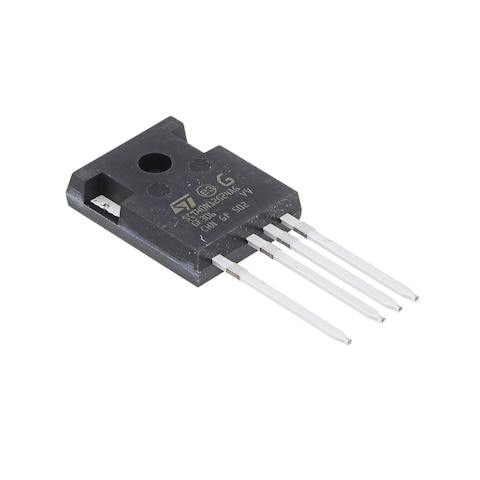

SiC MOSFETs Automotive-grade silicon carbide Power MOSFET 1200 V, 75 mOhm typ., 33 A in an HiP247-4 package

Complete Your Design

Datasheet:

SCTWA40N12G24AG Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about STMicroelectronics SCTWA40N12G24AG

In Stock: 90

Stock:: 90 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 17 Weeks Estimated factory production time for quantities greater than shown.

Quantities greater than 90 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	15,10 €	15,10 €
	10,73 €	107,30 €
	8,55 €	855,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	STMicroelectronics
Product Category:	SiC MOSFETs
RoHS:
Mounting Style:	Through Hole
Package/Case:	HiP247-4
Transistor Polarity:	N-Channel
Number of Channels:	1 Channel
Vds - Drain-Source Breakdown Voltage:	1.2 kV
Id - Continuous Drain Current:	33 A
Rds On - Drain-Source Resistance:	105 mOhms
Vgs - Gate-Source Voltage:	- 18 V, + 18 V
Vgs th - Gate-Source Threshold Voltage:	5 V
Qg - Gate Charge:	63 nC
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 200 C
Pd - Power Dissipation:	290 W
Channel Mode:	Enhancement
Qualification:	AEC-Q101
Brand:	STMicroelectronics
Configuration:	Single
Fall Time:	13 ns
Packaging:	Tube
Product:	SiC MOSFETS
Product Type:	SiC MOSFETS
Rise Time:	5 ns
Factory Pack Quantity:	600
Subcategory:	Transistors
Technology:	SiC
Typical Turn-Off Delay Time:	18 ns
Typical Turn-On Delay Time:	11 ns

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

SCTWA40N12G24AG Datasheet (PDF)

PCN

This functionality requires JavaScript to be enabled.

TARIC:: 8541290000
CAHTS:: 8541290000
USHTS:: 8541290065
JPHTS:: 854129000
MXHTS:: 8541299900
ECCN:: EAR99

Automotive-Grade Silicon Carbide Power MOSFETs

STMicroelectronics Automotive-Grade Silicon Carbide Power MOSFETs are developed using ST's advanced and innovative 2nd/3rd generation SiC MOSFET technology. The devices feature low on-resistance per unit area and very good switching performance. The MOSFETs feature a very high operating temperature capability (TJ = 200°C), and a very fast and robust intrinsic body diode.

Silicon Carbide Power MOSFETs

STMicroelectronics Silicon Carbide Power MOSFETs bring wide bandgap materials' advanced efficiency and reliability to a broader range of energy-conscious applications. These applications include inverters for electric/hybrid vehicles, solar or wind power generation, high-efficiency drives, power supplies, and smart-grid equipment. An extended voltage range from 650V to 1700V features excellent switching performance combined with very low on-state resistance R_DS(on) per area Figure Of Merit. ST SiC MOSFETs allow the design of more efficient and compact systems. The STMicro 1200V SiC MOSFETs exhibit an outstanding temperature rating of 200°C for improved thermal design of power electronics systems. Compared to silicon MOSFET, SiC MOSFET also features significantly reduced switching losses with minimal variation versus the temperature.
