SCT040H120G3AG

Name: STMicroelectronics SCT040H120G3AG
Brand: STMicroelectronics
SKU: 511-SCT040H120G3AG
Price: 10.91 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

511-SCT040H120G3AG

Mfr. No:

SCT040H120G3AG

Mfr.:

STMicroelectronics

Description:

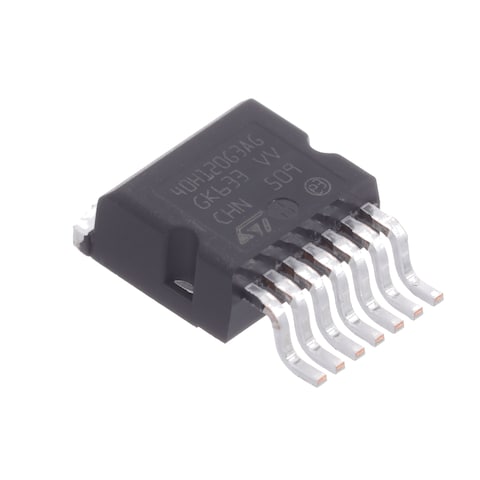

SiC MOSFETs Automotive-grade silicon carbide Power MOSFET 1200 V, 40 mOhm typ., 40 A in an H2PAK-7 package

Complete Your Design

Datasheet:

SCT040H120G3AG Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about STMicroelectronics SCT040H120G3AG

Availability

Stock:: 0

You can still purchase this product for backorder.

An unexpected error occurred. Please try again later.
On Order:: 996

Expected 4/22/2026
Factory Lead Time:: 16

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	10,91 €	10,91 €
	7,65 €	76,50 €
	6,65 €	665,00 €
Full Reel (Order in multiples of 1000)
	6,21 €	6.210,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	STMicroelectronics
Product Category:	SiC MOSFETs
RoHS:
Mounting Style:	SMD/SMT
Package/Case:	H2PAK-7
Transistor Polarity:	N-Channel
Number of Channels:	1 Channel
Vds - Drain-Source Breakdown Voltage:	1.2 kV
Id - Continuous Drain Current:	40 A
Rds On - Drain-Source Resistance:	54 mOhms
Vgs - Gate-Source Voltage:	- 18 V, + 18 V
Vgs th - Gate-Source Threshold Voltage:	4.2 V
Qg - Gate Charge:	54 nC
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 175 C
Pd - Power Dissipation:	300 W
Channel Mode:	Enhancement
Qualification:	AEC-Q101
Brand:	STMicroelectronics
Configuration:	Single
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	IT
Fall Time:	19.2 ns
Packaging:	Reel
Packaging:	Cut Tape
Product Type:	SiC MOSFETS
Rise Time:	21.1 ns
Factory Pack Quantity:	1000
Subcategory:	Transistors
Technology:	SiC
Typical Turn-Off Delay Time:	36.3 ns
Typical Turn-On Delay Time:	12.9 ns

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

SCT040H120G3AG Datasheet (PDF)

PCN

This functionality requires JavaScript to be enabled.

TARIC:: 8541290000
CAHTS:: 8541290000
USHTS:: 8541290065
JPHTS:: 854129000
MXHTS:: 8541299900
ECCN:: EAR99

Silicon Carbide Power MOSFETs

STMicroelectronics Silicon Carbide Power MOSFETs bring wide bandgap materials' advanced efficiency and reliability to a broader range of energy-conscious applications. These applications include inverters for electric/hybrid vehicles, solar or wind power generation, high-efficiency drives, power supplies, and smart-grid equipment. An extended voltage range from 650V to 1700V features excellent switching performance combined with very low on-state resistance R_DS(on) per area Figure Of Merit. ST SiC MOSFETs allow the design of more efficient and compact systems. The STMicro 1200V SiC MOSFETs exhibit an outstanding temperature rating of 200°C for improved thermal design of power electronics systems. Compared to silicon MOSFET, SiC MOSFET also features significantly reduced switching losses with minimal variation versus the temperature.

Automotive-Grade Silicon Carbide Power MOSFETs

STMicroelectronics Automotive-Grade Silicon Carbide Power MOSFETs are developed using ST's advanced and innovative 2nd/3rd generation SiC MOSFET technology. The devices feature low on-resistance per unit area and very good switching performance. The MOSFETs feature a very high operating temperature capability (TJ = 200°C), and a very fast and robust intrinsic body diode.
