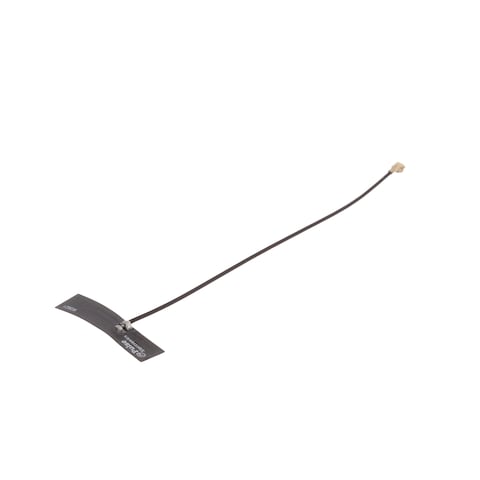

W3921B0100

Name: Pulse W3921B0100
Brand: Pulse Electronics
SKU: 673-W3921B0100
Price: 2 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

673-W3921B0100

Mfr. No:

W3921B0100

Mfr.:

Pulse Electronics

Datasheet:

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

Stock:: 47

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 1.250

Expected 2/23/2026
Factory Lead Time:: 6

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Pulse
Product Category:	Antennas
Product Type:	2.4GHz Antenna - 2.4GHz, 5GHz, Bluetooth, WiFi, WLAN, Zigbee
Product:	PCB Antennas
Type:	Dipole
Minimum Frequency:	2.4 GHz
Maximum Frequency:	2.5 GHz
Protocol - Bluetooth, BLE - 802.15.1:	Bluetooth, BLE
Protocol - WiFi - 802.11:	WiFi
Protocol - ANT, Thread, Zigbee - 802.15.4:	802.15.4 (ANT, Thread, Zigbee)
Protocol - Sub GHz:	IoT, ISM
Mechanical Style:	PCB Trace
Style:	I-Bar Flex
Gain:	1 dBi
Impedance:	50 Ohms
VSWR:	2
Power Rating:	2 W
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 85 C
Number of Bands:	1 Band
Mounting Style:	Adhesive Mount
Termination Style:	Connector
Antenna Connector Type:	U.FL
Centre Frequency:	2.45 GHz
Application:	Wireless Application, ISM Application, Set Top Boxes, Security, Transportation
Length:	33 mm
Width:	7.7 mm
Height:	0.4 mm
Cable Type:	100 mm RF1.13
Packaging:	Bulk
Brand:	Pulse Electronics
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Polarisation:	Linear
Factory Pack Quantity:	10
Subcategory:	Antennas
