2230001

Name: Phoenix Contact 2230001
Brand: Phoenix Contact
SKU: 651-2230001
Price: 25.71 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

651-2230001

Mfr. No:

2230001

Mfr.:

Phoenix Contact

Description:

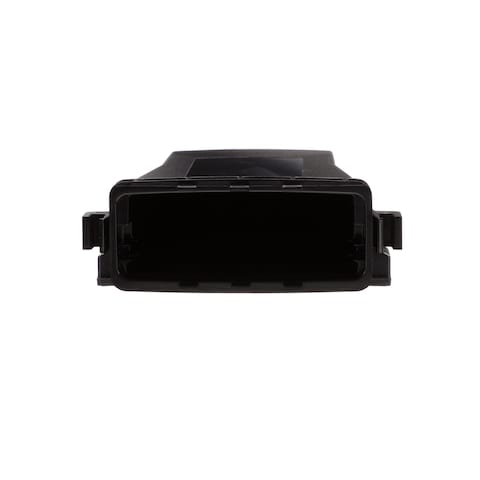

Miniature Cases – Industrial Enclosure base latch lock, non-vent

Datasheet:

2230001 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Phoenix Contact 2230001

Availability

Stock:: An unexpected error occurred. Please try again later.

3 Can Dispatch in 20 Days

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	25,71 €	25,71 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Phoenix Contact
Product Category:	Miniature Cases – Industrial
RoHS:
Type:	Housing, Electronic
Material:	Polycarbonate (PC)
Color:	Black
Length:	176 mm
Width:	170 mm
Height:	176 mm
Flammability Rating:	UL 94 V-0
Series:	ECS
Brand:	Phoenix Contact
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Housing Colour:	Black
Product:	Enclosures
Product Type:	Enclosures for Industrial Automation
Factory Pack Quantity:	5
Subcategory:	Enclosures, Racks and Boxes
Part # Aliases:	ECS-B-122X169-L-UV1-NV
Unit Weight:	1 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

2230001 Datasheet (PDF)

Conflict Material Declaration (Spreadsheet)

CNHTS:: 8538900000
CAHTS:: 8538909090
USHTS:: 8538908180
BRHTS:: 85389090
ECCN:: EAR99

ECS Field Housings for Harsh Conditions

Phoenix Contact ECS Field Housings for Harsh Conditions protects integrated electronics from dust, water, and UV radiation for indoor and outdoor applications. The ECS series is IP66/67 rated and has an operating temperature range of -40°C to +85°C. Phoenix Contact ECS Field Housings feature an integrated interlock to guard against the unintentional release of the PCB while a cable binder prevents tampering. Pressure compensation membranes are also available for vented housing designs.

Housing/Enclosure Configurator

Phoenix Contact Housing/Enclosure Configurator supports users in finding the right product or the right solution for an application and tailors the solution to the requirements. Create and save any necessary configuration for future reference. Attribute search categories include Housing dimensions, connection technology, temperature data, Bus connectors, or series.
