1704859

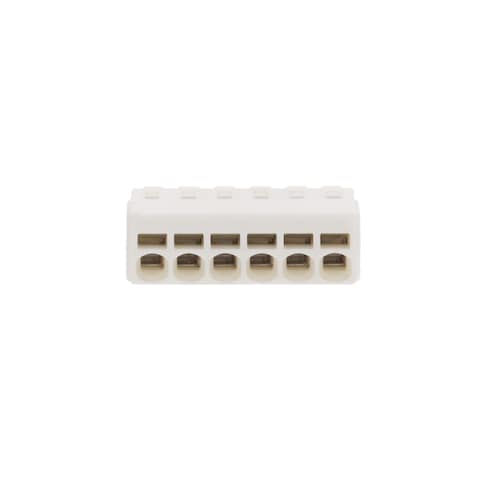

Name: Phoenix Contact 1704859
Brand: Phoenix Contact
SKU: 651-1704859
Price: 1.86 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

651-1704859

Mfr. No:

1704859

Mfr.:

Phoenix Contact

Description:

Pluggable Terminal Blocks PTSM 0,5/ 6-P-2,5 WH

Datasheet:

1704859 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Phoenix Contact 1704859

In Stock: 4.907

Stock:: 4.907 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 17 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	1,86 €	1,86 €
	1,84 €	368,00 €
	1,81 €	905,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Phoenix Contact
Product Category:	Pluggable Terminal Blocks
RoHS:
Product:	Plugs
Number of Positions:	6 Position
Pitch:	2.5 mm
Connection Method:	Push-In
Termination Style:	Spring Clamp
Mounting Style:	Cable Mounts
Current Rating:	6 A
Voltage Rating:	160 V
Wire Gauge Min:	24 AWG
Wire Gauge Max:	20 AWG
Series:	PTSM
Packaging:	Bulk
Brand:	Phoenix Contact
Contact Plating:	Tin
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	IN
Height:	5 mm
Housing Material:	Polyamide (PA)
Length:	15 mm
Product Type:	Pluggable Terminal Blocks
Factory Pack Quantity:	100
Subcategory:	Terminal Blocks
Tradename:	COMBICON Compact
Width:	16.1 mm
Part # Aliases:	PTSM_0,5/_6-P-2,5_WH PTSM056P25WH
Unit Weight:	1,694 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

1704859 Datasheet (PDF)

Specification Sheets

Conflict Material Declaration (Spreadsheet)

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Building Intelligence Connectors & Assemblies

Phoenix Contact Building Intelligence Connectors and Assemblies aid in building system design through integral cross-trade and cross-sector data integration in the IoT-based framework Emalytics. Emalytics offers an intelligent platform that combines all the key elements for smart building digital infrastructures. The Emalytics framework enables efficient operation where all technical systems can exchange information resulting in sustainable CO₂ emissions reduction and cost-effective optimization. The building intelligence connectors and cable assemblies feature various bus and network protocols (KNX, BACnet, Modbus, M-Bus, and more) standardized into a uniform data object. These durable components are developed using state-of-the-art technology propagating a future-proof solution.

PTSM Terminal Blocks

Phoenix Contact PTSM series 5mm Terminal Blocks are rugged spring-cage connectors. With a high current throughput at 6A and a small centerline of 2.5mm, the Phoenix Contact PTSM Terminal Blocks are available in the time- and cost-saving surface-mount technology, as well as pin-in-paste when mounting components to the board. Phoenix Contact PTSM series 5mm Terminal Blocks also includes pluggable versions of the miniature terminal blocks for SMD and THR applications.

LED Lighting Connectors

Phoenix Contact LED Lighting Connectors include several families of PCB terminal blocks and connectors to provide solutions for lights and lighting systems. These lighting connectors include models as short as 5mm high (PTSM) as well as those with spring push-in technology for a toolless design (PTS/PTSA). This Phoenix Contact lighting solutions feature UL and CSA approvals and current carrying capacities up to 10A while supporting wires from 26AWG to 14AWG. Surface-mount and through-hole reflow versions are available, with some terminal blocks including up to 24 positions per connector. Phoenix Contact LED Lighting Connectors are ideal for the automotive and infrastructure industries, wind and solar energy, plus applications in power supplies and transmission / distribution.

Terminal Blocks

Phoenix Contact offers an expansive selection of thousands of pluggable, DIN-rail, and fixed terminal blocks. In addition, Phoenix Contact has a broad range of terminal block accessories, including electronic housings, fuse blocks, markers, bridges and jumpers, and tools to meet the high demands of signal, data, and power connectivity applications.
