1119816

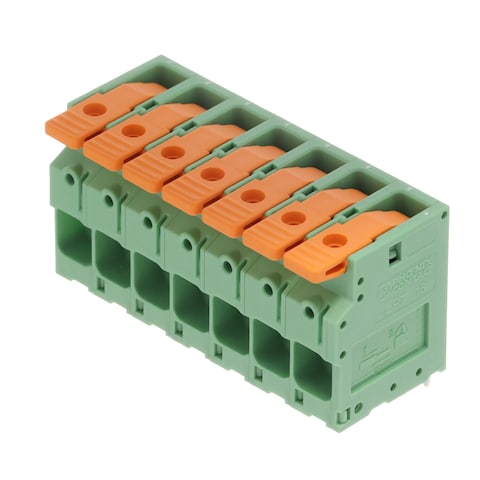

Name: Phoenix Contact 1119816
Brand: Phoenix Contact
SKU: 651-1119816
Price: 26.25 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

651-1119816

Mfr. No:

1119816

Mfr.:

Phoenix Contact

Description:

Fixed Terminal Blocks LPT 16/ 7-10,0-ZB

Datasheet:

1119816 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Phoenix Contact 1119816

Availability

Stock:: 0

You can still purchase this product for backorder.

An unexpected error occurred. Please try again later.
Factory Lead Time:: 11 Weeks Estimated factory production time.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	26,25 €	26,25 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Phoenix Contact
Product Category:	Fixed Terminal Blocks
RoHS:
Number of Positions:	7 Position
Pitch:	10 mm
Connection Method:	Lever
Current Rating:	76 A
Voltage Rating:	1 kV
Wire Gauge Min:	18 AWG
Wire Gauge Max:	4 AWG
Mounting Style:	PCB Mount
Mounting Angle:	Horizontal
Color:	Green
Brand:	Phoenix Contact
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	SK
Product:	Fixed Terminal Blocks
Product Type:	Fixed Terminal Blocks
Factory Pack Quantity:	10
Subcategory:	Terminal Blocks
Termination Style:	Solder Pin

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

1119816 Datasheet (PDF)

Models

1119816 Symbol & Footprint by SnapMagic

Conflict Material Declaration (Spreadsheet)

TARIC:: 8536901000
CNHTS:: 8536909000
USHTS:: 8536904000
MXHTS:: 8536904000
ECCN:: EAR99

LPT 16 Lever-Actuated PCB Terminal Blocks

Phoenix Contact LPT 16 Lever-Actuated PCB Terminal Blocks feature tool-free lever connection technology that is ideal for on-site device connections. These PCB terminal blocks combine ease-of-use of the lever actuation and reliable push-in spring connection. The LPT 16 Lever-Actuated PCB Terminal Blocks are ideal for use in regenerative energies, electrical drives, and electromobility charging infrastructures.

Terminal Blocks

Phoenix Contact offers an expansive selection of thousands of pluggable, DIN-rail, and fixed terminal blocks. In addition, Phoenix Contact has a broad range of terminal block accessories, including electronic housings, fuse blocks, markers, bridges and jumpers, and tools to meet the high demands of signal, data, and power connectivity applications.
