AXE620124

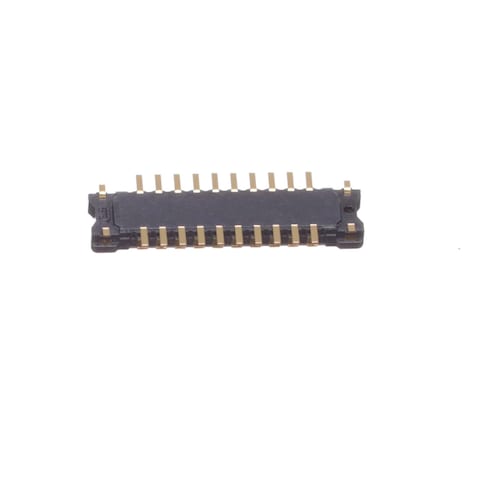

Name: Panasonic AXE620124
Brand: Panasonic Industrial Devices
SKU: 769-AXE620124
Price: 0.91 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

769-AXE620124

Mfr. No:

AXE620124

Mfr.:

Panasonic Industrial Devices

Description:

Board to Board & Mezzanine Connectors Header 0.4mm,20-pin w/o positioning boss

Datasheet:

AXE620124 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Panasonic Industrial Devices AXE620124

Availability

Stock:: Non-Stocked

An unexpected error occurred. Please try again later.
Factory Lead Time:: 10 Weeks Estimated factory production time.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,912 €	0,91 €
	0,771 €	7,71 €
	0,688 €	17,20 €
	0,655 €	65,50 €
	0,614 €	153,50 €
	0,585 €	292,50 €
	0,556 €	556,00 €
	0,521 €	1.302,50 €
Full Reel (Order in multiples of 5000)
	0,496 €	2.480,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Panasonic
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Headers
Number of Positions:	20 Position
Pitch:	0.4 mm (0.016 in)
Number of Rows:	2 Row
Termination Style:	Solder
Mounting Angle:	Vertical
Stack Height:	0.8 mm
Current Rating:	300 mA
Voltage Rating:	60 V
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 85 C
Contact Plating:	Gold
Contact Material:	Copper Alloy
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	A4S
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Panasonic Industrial Devices
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	5000
Subcategory:	Board to Board & Mezzanine Connectors

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

AXE620124 Datasheet (PDF)

PCN

Product Change Notification (PDF)

This functionality requires JavaScript to be enabled.

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Connectors

Panasonic Connectors include Board-to-Board and Mezzanine Connectors and FFC and FPC Connectors. Panasonic Board-to-Board and Mezzanine Connectors feature a "Tough Contact" structure that provides a slim and low-profile design resistant to various adverse environmental conditions. FFC (Flat Flex Cables) and FPC (Flexible Printed Circuits) Connectors feature a 0.9mm to 2.0mm height with a pitch between terminals of 0.3mm / 0.5mm.

Board to Board & Mezzanine Connectors

Panasonic Board to Board and Mezzanine Connectors feature a "Tough Contact" structure that provides a slim and low-profile design resistant to various adverse environmental conditions. These connectors utilize a locking structure that provides tactile feedback to ensure excellent mating/unmating operation.
