XG5M-1435-N

Name: Omron XG5M-1435-N
Brand: Omron Electronics
SKU: 653-XG5M-1435-N
Price: 4.37 EUR
Availability: InStock

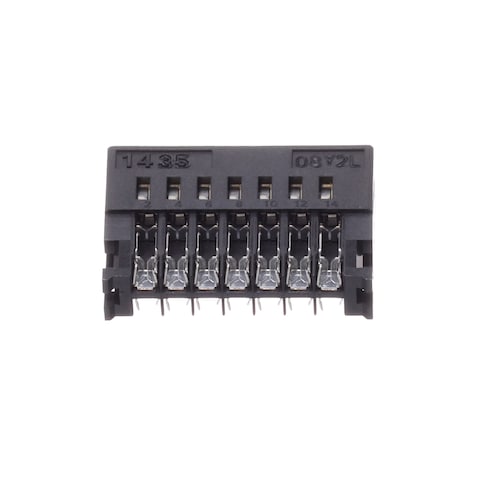

Images are for reference only
See Product Specifications

Mouser No:

653-XG5M-1435-N

Mfr. No:

XG5M-1435-N

Mfr.:

Omron Electronics

Description:

Headers & Wire Housings IDC 2Row Socket 14P Size2 1PolarizeGuide

Datasheet:

XG5M-1435-N Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 225

Stock:: 225 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 26 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	4,37 €	4,37 €
	3,75 €	37,50 €
	3,52 €	88,00 €
	3,10 €	155,00 €
	2,98 €	298,00 €
	2,91 €	814,80 €
	2,80 €	1.568,00 €
	2,72 €	3.046,40 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Omron
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Receptacle
Number of Positions:	14 Position
Pitch:	2.54 mm (0.1 in)
Number of Rows:	2 Row
Row Spacing:	2.54 mm (0.1 in)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	IDC
Mounting Angle:	Straight
Contact Gender:	Socket (Female)
Contact Plating:	Gold
Series:	XG5
Wire Gauge:	28 AWG to 26 AWG
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 85 C
Brand:	Omron Electronics
Contact Material:	Phosphor Bronze
Current Rating:	2 A
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Material:	Polybutylene Terephthalate (PBT)
Insulation Resistance:	1 GOhms
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	140
Subcategory:	Headers & Wire Housings
Voltage Rating:	300 V
Part # Aliases:	XG5M1435N

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

XG5M-1435-N Datasheet (PDF)

This functionality requires JavaScript to be enabled.

Compliance Codes

TARIC:: 8536699099
CNHTS:: 8538900000
CAHTS:: 8536690090
USHTS:: 8536698000
JPHTS:: 853669000
KRHTS:: 8536699000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Origin Classifications

Country of Origin:: Japan
Assembly Country of Origin:: Not available
Country of Diffusion:: Not available

The country is subject to change at the time of shipment.

XG5M-1435-N

Mfr.: Omron Electronics

Description: Headers & Wire Housings IDC 2Row Socket 14P Size2 1PolarizeGuide
