XG4T-1604

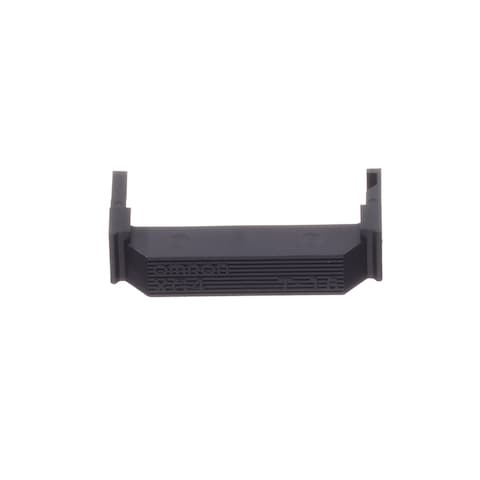

Name: Omron XG4T-1604
Brand: Omron Electronics
SKU: 653-XG4T-1604
Price: 0.29 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

653-XG4T-1604

Mfr. No:

XG4T-1604

Mfr.:

Omron Electronics

Description:

Rectangular Mil Spec Connectors StrainRelief NoLock ForSocket XG4M 16Pin

Datasheet:

XG4T-1604 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Omron Electronics XG4T-1604

In Stock: 2.563

Stock:: 2.563 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 26 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,292 €	0,29 €
	0,264 €	6,60 €
	0,244 €	12,20 €
	0,184 €	36,80 €
	0,183 €	109,80 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Omron
Product Category:	Rectangular Mil Spec Connectors
RoHS:
Product:	Accessories
Number of Positions:	16 Position
Number of Rows:	2 Row
MIL Type:	MIL-C-83503
Series:	XG4
Accessory Type:	Strain Relief
Brand:	Omron Electronics
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Housing Material:	Polybutylene Terephthalate (PBT)
Maximum Operating Temperature:	+ 105 C
Minimum Operating Temperature:	- 55 C
Product Type:	Rectangular MIL Spec Connectors
Factory Pack Quantity:	200
Subcategory:	MIL-Spec / MIL-Type
Part # Aliases:	XG4T1604BYOMZ

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

XG4T-1604 Datasheet (PDF)

PCN

Product Change Notification (PDF)

This functionality requires JavaScript to be enabled.

TARIC:: 8536699099
CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8538908180
JPHTS:: 853669000
KRHTS:: 8536699000
MXHTS:: 85366999
BRHTS:: 85366990
ECCN:: EAR99

EV Residential V2H Charging Solutions

Omron Electronics features a range of electronic components for applications involving electric vehicle (EV) residential vehicle-to-home (V2H) charging. The increasing popularity of EVs means drivers need a convenient place to charge them, such as their homes. Omron V2H charging components are designed to provide manufacturers with the reliability and durability required for at-home charging solutions.

XG4 Flat Cable Connectors

Omron Electronics XG4 Flat Cable Connectors are industry-standard circuit board connectors that conform to MIL standards. XG4M-U connectors feature lock levers on the strain relief/socket instead of on the plug, saving 24% of space. The XG4C space-saving box-type plugs are also available. Omron XG4 Flat Cable Connectors can be used with XG5 IDC connectors for discrete wires, XG8 original PCB plugs, and XG2 IDC bus connectors for PCBs. The original PCB plugs (XG8) and box-type plugs (XG4C) can be locked using external XG5Z and XG4Z lock levers.
