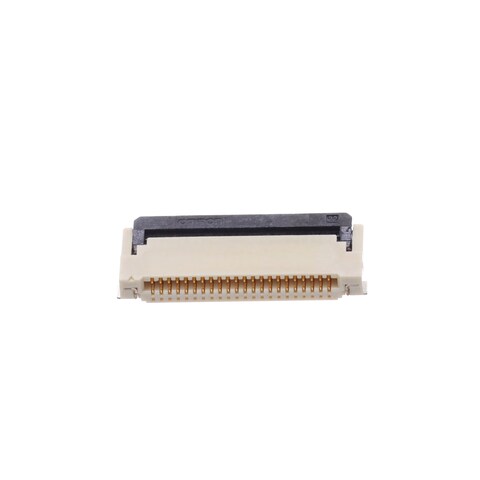

XF2M-2215-1A

Name: Omron XF2M-2215-1A
Brand: Omron Electronics
SKU: 653-XF2M-2215-1A
Price: 1.58 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

653-XF2M-2215-1A

Mfr. No:

XF2M-2215-1A

Mfr.:

Omron Electronics

Description:

FFC & FPC Connectors .5mm Rotary BackLock SMT Dual 22P Adhesv

Datasheet:

XF2M-2215-1A Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Omron Electronics XF2M-2215-1A

In Stock: 1.121

Stock:: 1.121

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 1.500

Expected 6/19/2026

1.500

Expected 7/31/2026
Factory Lead Time:: 26

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Packaging:

Full Reel (Order in multiples of 1500)

Cut Tape

MouseReel™ (+5,00 €)

Pricing (EUR)

Qty.	Unit Price	Ext. Price
Cut Tape / MouseReel™ ^†
	1,58 €	1,58 €
	1,34 €	13,40 €
	1,16 €	29,00 €
	1,13 €	113,00 €
	1,08 €	270,00 €
Full Reel (Order in multiples of 1500)
	1,02 €	1.530,00 €
	1,01 €	3.030,00 €

† A MouseReel™ fee of 5,00 € will be added and calculated in your basket. All MouseReel™ orders are non-cancellable and non-returnable. ↩

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Omron
Product Category:	FFC & FPC Connectors
RoHS:
Product:	Board Mount
Number of Positions:	22 Position
Pitch:	0.5 mm
Termination Style:	SMD/SMT
Mounting Angle:	Right Angle
Contact Location:	Dual Contact
Contact Plating:	Gold
Current Rating:	500 mA
Series:	XF2M
Minimum Operating Temperature:	- 30 C
Maximum Operating Temperature:	+ 85 C
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Omron Electronics
Contact Material:	Spring Copper Alloy / Nickel Substrate
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Housing Colour:	Natural
Housing Material:	Liquid Crystal Polymer (LCP)
Product Type:	FFC & FPC Connectors
Factory Pack Quantity:	1500
Subcategory:	FFC & FPC Connectors
Voltage Rating:	50 V
Part # Aliases:	XF2M22151A
