D2QW-C103M

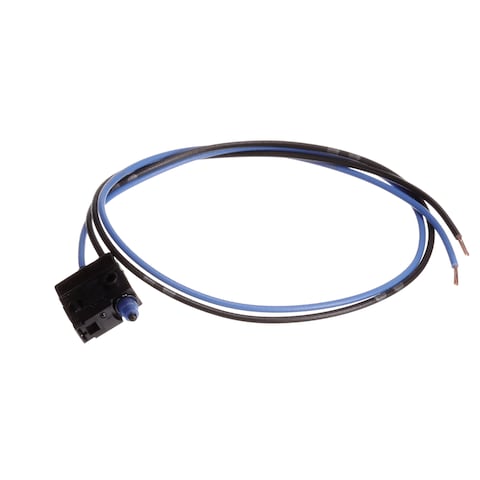

Name: Omron D2QW-C103M
Brand: Omron Electronics
SKU: 653-D2QW-C103M
Price: 7.15 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

653-D2QW-C103M

Mfr. No:

D2QW-C103M

Mfr.:

Omron Electronics

Description:

Basic / Snap Action Switches Subminiature Basic Switch

Datasheet:

D2QW-C103M Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Omron Electronics D2QW-C103M

In Stock: 50

Stock:: 50 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 26 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	7,15 €	7,15 €
	5,73 €	57,30 €
	5,44 €	108,80 €
	5,30 €	265,00 €
	4,30 €	430,00 €
	4,06 €	812,00 €
	3,69 €	1.845,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Omron
Product Category:	Basic / Snap Action Switches
Type:	Subminiature
Contact Form:	SPST-NO
Switch Function:	OFF - (ON)
Actuator:	Plunger, Pin
Current Rating:	100 mA
Voltage Rating DC:	30 VDC
Operating Force:	1.5 N
Termination Style:	Wire Lead
Mounting Style:	Chassis Mount
IP Rating:	IP67
Actuator Style:	Plunger
Brand:	Omron Electronics
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Illuminated:	Non-Illuminated
Maximum Operating Temperature:	+ 85 C
Minimum Operating Temperature:	- 40 C
Product Type:	Snap Action Switches
Factory Pack Quantity:	100
Subcategory:	Switches
Part # Aliases:	D2QWC103M

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

D2QW-C103M Datasheet (PDF)

This functionality requires JavaScript to be enabled.

TARIC:: 8536508099
CNHTS:: 8536500090
USHTS:: 8536509040
ECCN:: EAR99

Recreational Vehicle Solutions

Omron Electronics manufactures a broad selection of reliable and durable components for recreational vehicle solutions. The product lineup includes relays and switches skillfully engineered to withstand the harsh conditions of recreational vehicle applications. The relays are small and designed to run off 12V or 24V battery systems typically used in small mobility vehicles. The relays also offer load support and high inrush capability for motors and lighting applications. The sealed micro switches are ideal for areas with water spray or excessive dust (IP67 rated). The switches are available in a variety of contact ratings, terminals, levers, and mounting styles. The Omron recreational vehicle product lineup can be used for detection applications such as seating detection, security components like headlamps and flashers, and battery power distribution, including DC high-voltage emergency shutoff.
