CF-LD-1DC-AW2W

Name: Nidec CF-LD-1DC-AW2W
Brand: Nidec Components
SKU: 229-CF-LD-1DC-AW2W
Price: 2.82 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

229-CF-LD-1DC-AW2W

Mfr. No:

CF-LD-1DC-AW2W

Mfr.:

Nidec Components

Description:

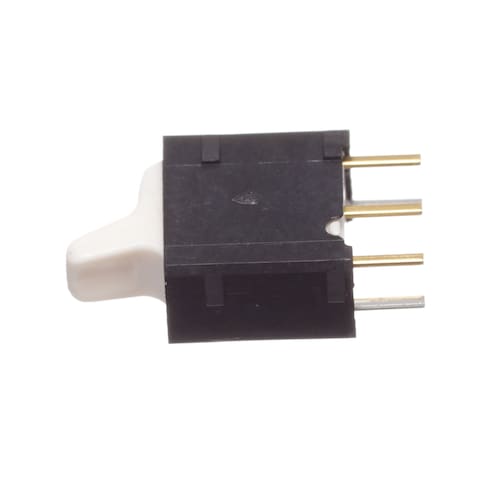

Rocker Switches SPDT, ON-ON, white lever, straight PC terminals, 0.4VA @ 28V AC/DC

Datasheet:

CF-LD-1DC-AW2W Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 212

Stock:: 212 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 12 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	2,82 €	2,82 €
	2,39 €	23,90 €
	2,22 €	55,50 €
	2,17 €	217,00 €
	1,81 €	362,00 €
	1,70 €	1.020,00 €
	1,64 €	1.640,00 €
	1,54 €	4.004,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Nidec
Product Category:	Rocker Switches
RoHS:
Product:	Lever Switches
Type:	Hyper-Miniature Lever Switch
Illuminated:	Non-Illuminated
Contact Form:	SPDT
Switch Function:	ON - ON
Current Rating:	100 mA
Voltage Rating AC:	28 VAC
Voltage Rating DC:	28 VDC
Termination Style:	PC Pin
Actuator:	Lever
Color:	Black
Mounting Style:	Through Hole
Contact Plating:	Gold
Packaging:	Tray
Actuator Length:	3.8 mm
Actuator Material:	Polyamide (PA)
Actuator Style:	Paddle
Brand:	Nidec Components
Flammability Rating:	UL 94 V-0
Housing Material:	Polyamide (PA)
Legend:	No Legend
Life:	50000 Cycle
Maximum Operating Temperature:	+ 85 C
Minimum Operating Temperature:	- 40 C
Power Rating:	0.4 VA
Product Type:	Rocker Switches
Series:	CF-LD
Factory Pack Quantity:	200
Subcategory:	Switches

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

CF-LD-1DC-AW2W Datasheet (PDF)

This functionality requires JavaScript to be enabled.

Compliance Codes

CNHTS:: 8536500090
USHTS:: 8536509065
ECCN:: EAR99

Origin Classifications

Country of Origin:: China
Assembly Country of Origin:: Not available
Country of Diffusion:: Not available

The country is subject to change at the time of shipment.
