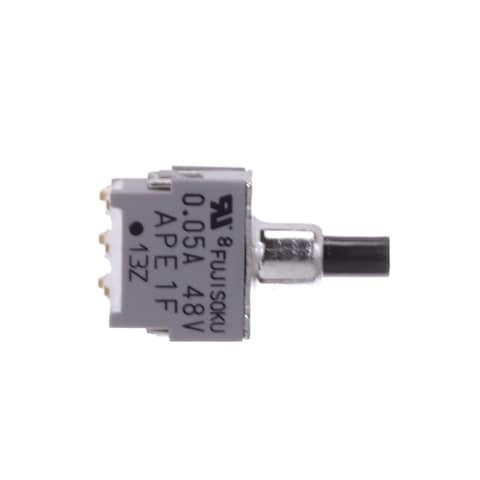

APE1F-5M-10-Z

Nidec Components
229-APE1F-5M-10-Z
APE1F-5M-10-Z

Mfr.:

Description:
Pushbutton Switches SPDT, ON-(ON), pushbutton, smooth bushing, right angle PC terminals, 50mA @ 60V AC/DC

Datasheet:
ECAD Model:
Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 243

Stock:
243
Can Dispatch Immediately
On Order:
200
Expected 3/9/2026
Factory Lead Time:
12
Weeks Estimated factory production time for quantities greater than shown.
Minimum: 1   Multiples: 1
Unit Price:
-,-- €
Ext. Price:
-,-- €
Est. Tariff:

Pricing (EUR)

Qty. Unit Price
Ext. Price
3,04 € 3,04 €
2,62 € 26,20 €
2,48 € 49,60 €
2,37 € 118,50 €
2,29 € 229,00 €

Product Attribute Attribute Value Select Attribute
Nidec
Product Category: Pushbutton Switches
RoHS:
APE
Standard Switches
Subminiature
Non-Illuminated
SPDT
PCB Mount
ON - (ON)
Plunger
50 mA
60 VDC
60 VAC
PC Pin, Right Angle
Gold
Tray
Brand: Nidec Components
Color: Black
Country of Assembly: Not Available
Country of Diffusion: Not Available
Country of Origin: CN
Features: Sealed
Life: 10000 Cycle
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 20 C
Product Type: Pushbutton Switches
Factory Pack Quantity: 100
Subcategory: Switches
Products found:
To show similar products, select at least one checkbox
Select at least one checkbox above to show similar products in this category.
Attributes selected: 0

Datasheet

This functionality requires JavaScript to be enabled.

CNHTS:
8536500090
USHTS:
8536509031
ECCN:
EAR99
