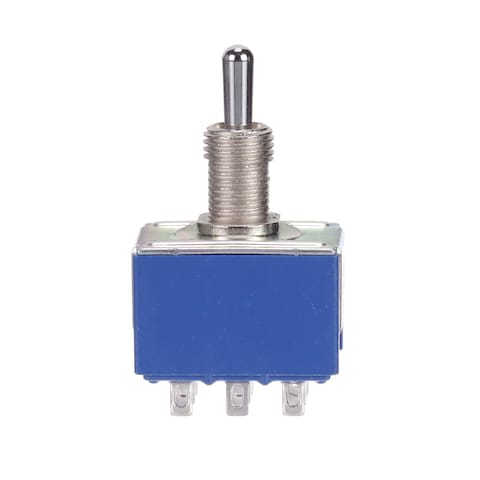

8J3021-Z

Name: Nidec 8J3021-Z
Brand: Nidec Components
SKU: 229-8J3021-Z
Price: 12.42 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

229-8J3021-Z

Mfr. No:

8J3021-Z

Mfr.:

Nidec Components

Description:

Toggle Switches 3PDT, ON-OFF-ON, 6.8mm toggle, 1/4"-40 threaded bushing, solder lug terminals, 6A @ 125V AC

Datasheet:

8J3021-Z Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

Availability

Stock:: Non-Stocked

An unexpected error occurred. Please try again later.
Factory Lead Time:: 12 Weeks Estimated factory production time.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	12,42 €	12,42 €
	10,72 €	107,20 €
	10,10 €	252,50 €
	9,66 €	483,00 €
	9,24 €	924,00 €
	8,71 €	2.177,50 €
	8,32 €	4.160,00 €
	7,96 €	7.960,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Nidec
Product Category:	Toggle Switches
RoHS:
Illuminated:	Non-Illuminated
Contact Form:	3PDT
Switch Function:	ON - OFF - ON
Mounting Style:	Panel Mount
Termination Style:	Solder Lug
Current Rating:	3 A, 4 A, 6 A
Voltage Rating AC:	125 VAC, 250 VAC
Voltage Rating DC:	30 VDC
Actuator:	Bat
Terminal Seal:	Sealed
Contact Plating:	Silver
Compliance:	UL; CSA
Series:	8J
Packaging:	Bulk
Actuator Length:	6.8 mm
Actuator Style:	Short, Round
Brand:	Nidec Components
Life:	50000 Cycle
Maximum Operating Temperature:	+ 85 C
Minimum Operating Temperature:	- 30 C
Mounting Type:	Bushing
Product Type:	Toggle Switches
Factory Pack Quantity:	25
Subcategory:	Switches

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

8J3021-Z Datasheet (PDF)

This functionality requires JavaScript to be enabled.

TARIC:: 8536508099
CNHTS:: 8536500090
USHTS:: 8536509065
ECCN:: EAR99
