93603-0074

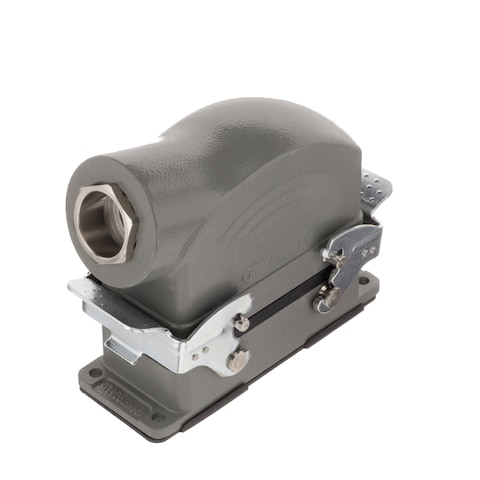

Name: Molex 93603-0074
Brand: Molex
SKU: 538-93603-0074
Price: 151.39 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

538-93603-0074

Mfr. No:

93603-0074

Mfr.:

Molex

Description:

Heavy Duty Power Connectors COMPLETE SET W/CABLE GLAND 7916.7751.5

Datasheet:

93603-0074 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

Availability

Stock:: Non-Stocked

An unexpected error occurred. Please try again later.
Factory Lead Time:: Request Delivery Quote

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

This Product Ships FREE

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	151,39 €	151,39 €
	128,70 €	1.287,00 €
	126,56 €	3.164,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Heavy Duty Power Connectors
RoHS:
Series:	93603
Product:	Connector Kits
Current Rating:	16 A
Number of Positions:	16 Position
Termination Style:	Screw
Voltage Rating:	500 V
Housing/Hood Size:	16B
Cable Entry Angle:	Side
Insert/Contact Gender:	Male, Female
Thread Size:	M25
Housing Material:	Aluminum
Contact Plating:	Silver
Contact Material:	Copper Alloy
Wire Gauge Min:	20 AWG
Wire Gauge Max:	14 AWG
IP Rating:	IP66
Tradename:	HDC
Brand:	Molex
Product Type:	Heavy Duty Power Connectors
Factory Pack Quantity:	1
Subcategory:	Power Connectors
Part # Aliases:	7916.7751.5 0936030074
Unit Weight:	430 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

93603-0074 Datasheet

RoHS Certificate (PDF)

Compliance Codes

TARIC:: 8536699099
CNHTS:: 8538900000
CAHTS:: 8536690090
USHTS:: 8536698000
JPHTS:: 853669000
KRHTS:: 8536699000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Origin Classifications

Country of Origin:: China
Assembly Country of Origin:: Not available
Country of Diffusion:: Not available

The country is subject to change at the time of shipment.

Environmentally Sealed Connectors

Molex Environmentally Sealed Connectors provide an ideal interconnect solution for heavy-duty and harsh-environment applications. Molex offers a wide range of standard-sealed and custom-sealed interconnect systems. These connectors are suitable for applications requiring ruggedized sealed plugs, receptacles, and power connectors, including IP67 or IP68 ratings.

Industrial Solutions

Molex Industrial Solutions offer robust products designed for the harshest environmental conditions to deliver safe and reliable connections. These products also provide protection from contamination, moisture, or vibration. The Molex Industrial Solutions lineup features high performance and a long product life.
