78777-1002

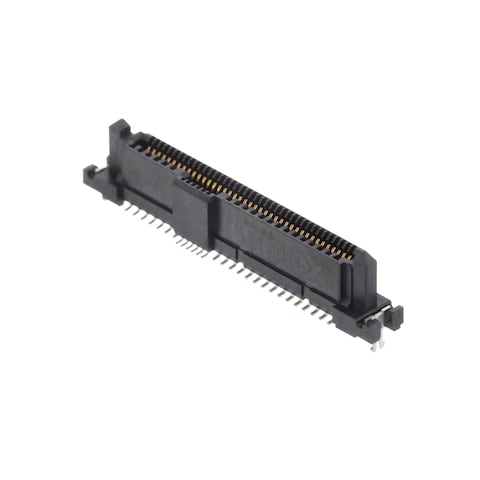

Name: Molex 78777-1002
Brand: Molex
SKU: 538-78777-1002
Price: 3.96 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

538-78777-1002

Mfr. No:

78777-1002

Mfr.:

Molex

Description:

I/O Connectors SAS/PCIE Rcpt Vert SMT 0.76AuLF 68Ckt

Datasheet:

78777-1002 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 78777-1002

Availability

Stock:: 0

You can still purchase this product for backorder.

An unexpected error occurred. Please try again later.
On Order:: 1.236

Expected 9/8/2026
Factory Lead Time:: 16

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	3,96 €	3,96 €
	3,36 €	33,60 €
	3,16 €	79,00 €
	3,00 €	150,00 €
	2,86 €	286,00 €
Full Reel (Order in multiples of 250)
	2,85 €	712,50 €
	2,63 €	1.315,00 €
	2,46 €	2.460,00 €
	2,41 €	6.025,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	I/O Connectors
RoHS:
Product:	Serial Connectors
Gender:	Female
Number of Positions:	68 Position
Pitch:	0.8 mm, 1.27 mm
Voltage Rating:	30 V
Contact Plating:	Gold
Mounting Style:	PCB Mount
Termination Style:	SMD/SMT
Mounting Angle:	Vertical
Series:	78777
Minimum Operating Temperature:	0 C
Maximum Operating Temperature:	+ 55 C
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Molex
Color:	Black
Contact Material:	Copper Alloy
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Current Rating:	1.5 A
Flammability Rating:	UL 94 V-0
Housing Material:	Liquid Crystal Polymer (LCP)
Insulation Resistance:	1 GOhms
Product Type:	I/O Connectors
Factory Pack Quantity:	250
Subcategory:	I/O Connectors
Type:	SAS
Part # Aliases:	787771002 0787771002
Unit Weight:	1,835 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

78777-1002 Datasheet

Models

STP File (Zip)

PCN

Specification Sheets

RoHS Certificate (PDF)

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

SAS-3 & U.2 Backplane Connectors

Molex SAS-3 and U.2 (SFF-8639) Backplane Connectors support 12Gbps data rates and combine the latest enhancements of SAS-3 and U.2 technologies to suit Solid State Device (SDD) applications. These high-speed connectors include right-angle SAS-3 and U.2 receptacles featuring a common PCB footprint for cost-effective future connector upgrades. These Molex backplane connectors also offer a wide range of mating height and PCB mounting and retention configurations.
