505596-0401

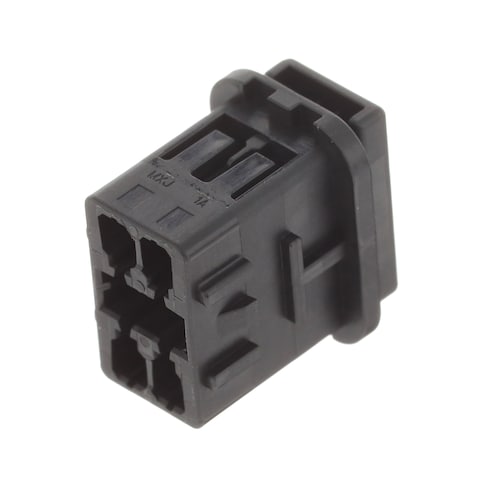

Name: Molex 505596-0401
Brand: Molex
SKU: 538-505596-0401
Price: 0.22 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-505596-0401

Mfr. No:

505596-0401

Mfr.:

Molex

Description:

Headers & Wire Housings MUO 2.5 W/W DUAL ROW ASSEMBLY 4P

Datasheet:

505596-0401 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 505596-0401

In Stock: 2.873

Stock:: 2.873 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 24 Weeks Estimated factory production time for quantities greater than shown.

Quantities greater than 2873 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,224 €	0,22 €
	0,217 €	2,17 €
	0,202 €	505,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Headers & Wire Housings
RoHS:
Product:	Wire Housings
Type:	Plug Housing
Number of Positions:	4 Position
Pitch:	2.5 mm (0.098 in)
Number of Rows:	2 Row
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Series:	505596
Tradename:	MUO 2.5
Application:	Wire-to-Wire, Signal
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 105 C
Brand:	Molex
Current Rating:	5 A
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Gender:	Plug
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	1600
Subcategory:	Headers & Wire Housings
Part # Aliases:	5055960401 05055960401
Unit Weight:	806 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Compliance Codes

TARIC:: 8536699099
CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8538906000
JPHTS:: 853669000
MXHTS:: 85366999
BRHTS:: 85366990
ECCN:: EAR99

Origin Classifications

Country of Origin:: Malaysia
Assembly Country of Origin:: Not available
Country of Diffusion:: Not available

The country is subject to change at the time of shipment.

MUO 2.5 Termination Connectors

Molex MUO 2.5 Termination Connectors replace closed-end (CE) terminals efficiently as a grounding solution. The MUO 2.5 Connectors reduce harness assembly lead time and improve reliability and processing at OEM and cable assembly houses. These connectors feature finger protection, tangle prevention, as well as a simple water exhaust function. Two separated retainers protect cables and secure the terminal position. Typical applications include general home appliance and HVAC equipment.
