45776-1008

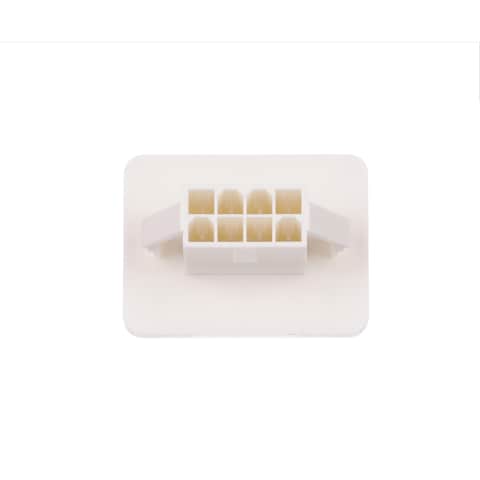

Name: Molex 45776-1008
Brand: Molex
SKU: 538-45776-1008
Price: 0.98 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-45776-1008

Mfr. No:

45776-1008

Mfr.:

Molex

Description:

Headers & Wire Housings Mini-Fit 8Ckt Foam in-Place Plug Hsg

Datasheet:

45776-1008 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 6

Stock:: 6 Can Dispatch Immediately

An unexpected error occurred. Please try again later.

Quantities greater than 6 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,989 €	0,99 €
	0,836 €	8,36 €
	0,802 €	20,05 €
	0,599 €	59,90 €
	0,566 €	141,50 €
	0,534 €	267,00 €
	0,503 €	352,10 €
	0,501 €	1.402,80 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Headers & Wire Housings
RoHS:
Product:	Wire Housings
Type:	Plug Housing
Number of Positions:	8 Position
Pitch:	4.2 mm (0.165 in)
Number of Rows:	2 Row
Row Spacing:	4.2 mm (0.165 in)
Mounting Style:	Panel Mount
Termination Style:	Crimp
Mounting Angle:	Straight
Series:	45776
Tradename:	Mini-Fit
Application:	Wire-to-Wire, Power
Brand:	Molex
Contact Type:	Pin
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Flammability Rating:	UL 94 V-2
Housing Colour:	Natural
Housing Gender:	Male
Housing Material:	Nylon
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	1
Subcategory:	Headers & Wire Housings
Unit Weight:	5,221 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

45776-1008 Datasheet (PDF)

PCN

RoHS Certificate (PDF)

TARIC:: 8536699099
CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8538906000
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 85366999
BRHTS:: 85366990
ECCN:: EAR99

Fit Family Connectors

Molex Fit Dual-Row Connectors provide power delivery and power distribution in wire-to-wire, wire-to-board, and board-to-board configurations. Molex Fit power connectors range from the 2.50mm pitch Nano-Fit to the 5.7mm pitch Mega-Fit connectors. These off-the-shelf connectors can be modified, customized, or adapted to meet virtually any application need.
