39-03-9102

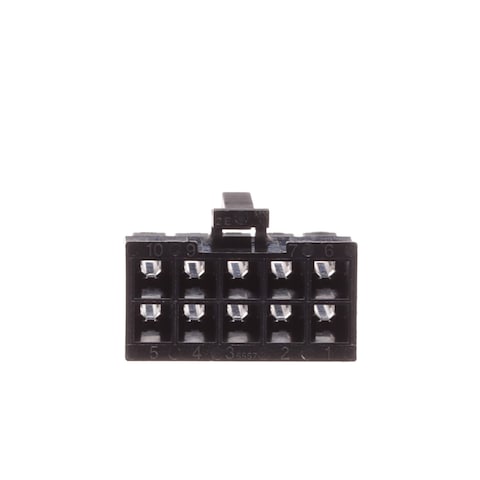

Name: Molex 39-03-9102
Brand: Molex
SKU: 538-39-03-9102
Price: 0.34 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-39-03-9102

Mfr. No:

39-03-9102

Mfr.:

Molex

Description:

Headers & Wire Housings Mini Fit Crimp Rec Hsg 10Ckt Black

Datasheet:

39-03-9102 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 11.940

Stock:: 11.940

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 5.000
Factory Lead Time:: 14

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,344 €	0,34 €
	0,296 €	2,96 €
	0,264 €	6,60 €
	0,251 €	25,10 €
	0,224 €	56,00 €
	0,214 €	214,00 €
	0,20 €	500,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Headers & Wire Housings
RoHS:
Product:	Wire Housings
Type:	Receptacle Housing
Number of Positions:	10 Position
Pitch:	4.2 mm (0.165 in)
Number of Rows:	2 Row
Row Spacing:	4.2 mm (0.165 in)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Mounting Angle:	Straight
Contact Gender:	Socket (Female)
Series:	5557
Tradename:	Mini-Fit Jr.
Application:	Wire-to-Board, Power
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 105 C
Brand:	Molex
Contact Type:	Socket
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Gender:	Female
Housing Material:	Nylon
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	1
Subcategory:	Headers & Wire Housings
Unit Weight:	2,147 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

39-03-9102 Datasheet (PDF)

PCN

RoHS Certificate (PDF)

TARIC:: 8536901000
CNHTS:: 8538900000
CAHTS:: 8536900020
USHTS:: 8538906000
JPHTS:: 853890000
KRHTS:: 8536909010
MXHTS:: 8538900100
BRHTS:: 85389090
ECCN:: EAR99

Mini-Fit Connector Family

Molex Mini-Fit Jr. and Mini-Fit Plus Power Connectors deliver up to 9A and 13A, respectively. Blind-mating and terminal-position assurance (TPA) options provide a versatile connector system for a wide range of applications. Typical applications for these Molex connectors include telecommunications / networking, industrial, home appliances, medical, and automotive.

Fit Family Connectors

Molex Fit Dual-Row Connectors provide power delivery and power distribution in wire-to-wire, wire-to-board, and board-to-board configurations. Molex Fit power connectors range from the 2.50mm pitch Nano-Fit to the 5.7mm pitch Mega-Fit connectors. These off-the-shelf connectors can be modified, customized, or adapted to meet virtually any application need.

Mini-Fit Jr. Connectors

Molex Mini-Fit Jr. Connectors are ideal for higher-current / higher-density applications that require design flexibility for wire-to-wire and wire-to-board configurations. Molex Mini-Fit Jr. connectors are made for power applications up to 9.0A per circuit. The connectors feature fully isolated terminals, positive housing locks, low-engagement forces, and polarized housings. They are UL recognized, CSA approved, and TUV licensed. All components are lead free and RoHS compliant. Molex Mini-Fit Jr. Connectors are available in a single row or dual row, 2 to 24 circuit options, and multiple plating and material selections.
