35151-0619

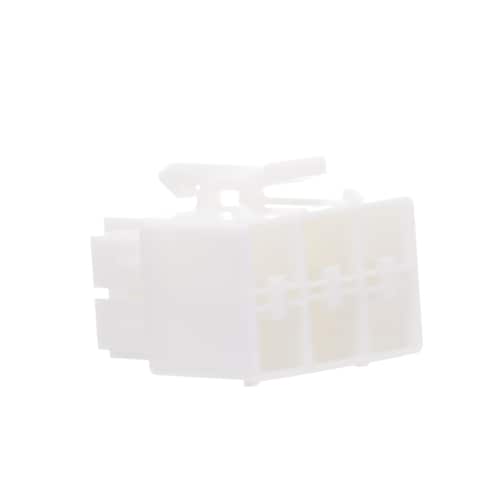

Name: Molex 35151-0619
Brand: Molex
SKU: 538-35151-0619
Price: 0.42 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-35151-0619

Mfr. No:

35151-0619

Mfr.:

Molex

Description:

Headers & Wire Housings VersaBlade .070 W/W 6PIN PLUG HSG

Datasheet:

35151-0619 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 35151-0619

In Stock: 3.264

Stock:: 3.264 Can Dispatch Immediately

An unexpected error occurred. Please try again later.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,421 €	0,42 €
	0,366 €	3,66 €
	0,335 €	8,38 €
	0,302 €	30,20 €
	0,224 €	67,20 €
	0,201 €	211,05 €
	0,193 €	492,15 €
	0,186 €	948,60 €
	0,181 €	1.819,05 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Headers & Wire Housings
RoHS:
Product:	Wire Housings
Type:	Plug Housing
Number of Positions:	6 Position
Pitch:	7.3 mm (0.287 in)
Number of Rows:	2 Row
Row Spacing:	7.8 mm (0.307 in)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Contact Gender:	Pin (Male)
Series:	35151
Tradename:	VersaBlade
Application:	Wire-to-Wire, Power
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 110 C
Brand:	Molex
Flammability Rating:	UL 94 V-0
Housing Colour:	White
Housing Gender:	Female
Housing Material:	Polyester
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	150
Subcategory:	Headers & Wire Housings
Part # Aliases:	351510619 0351510619
Unit Weight:	4,226 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Compliance Codes

CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8538906000
JPHTS:: 853669000
MXHTS:: 85366999
BRHTS:: 85366990
ECCN:: EAR99

Origin Classifications

Country of Origin:: Korea, Republic of
Assembly Country of Origin:: Not available
Country of Diffusion:: Not available

The country is subject to change at the time of shipment.

MicroClasp Wire-to-Board Connector System

Molex MicroClasp Wire-to-Board Connector System provides space savings and easy mating/unmating compared to similar 2.00 and 2.50mm pitch wire-to-board systems. MicroClasp includes a unique inner positive lock that provides latch protection, secure retention, and an audible mating "click". The terminal design offers low insertion and withdrawal forces and is able to carry 3.0A current in a compact 2.00mm pitch design. Molex MicroClasp system is available in 2-40 circuits in SMT and through-hole designs, and in single- and dual-row versions.

VersaBlade Wire-to-Wire Connector Systems

Molex VersaBlade Wire-to-Wire Connector Systems enable reliable signal and power transmission at 300V/15A for standard components and 600V/14A for the high-temperature variant. The VersaBlade standard systems operate in a -40°C to +110°C temperature range and offer superior mating reliability and polarization for easy harness assembly. These connectors enable both power and signal capabilities in one system with features that prevent mismating to ensure a reliable signal at all times. The ATP series connectors are used in air conditioners, microwave ovens, washing machines, heat pumps, refrigerators, and heating and ventilation systems.
