34900-4120

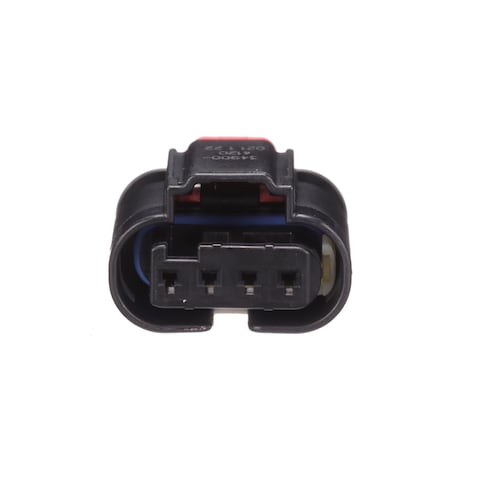

Name: Molex 34900-4120
Brand: Molex
SKU: 538-34900-4120
Price: 1.01 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-34900-4120

Mfr. No:

34900-4120

Mfr.:

Molex

Description:

Automotive Connectors 1.2MM SLD ASSY RC PT 1X4 BLK KEYA/04

Datasheet:

34900-4120 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 34900-4120

In Stock: 2.694

Stock:: 2.694 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 13 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	1,01 €	1,01 €
	0,858 €	8,58 €
	0,766 €	19,15 €
	0,729 €	72,90 €
	0,635 €	158,75 €
	0,606 €	303,00 €
	0,562 €	562,00 €
	0,54 €	1.512,00 €
	0,505 €	2.828,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Automotive Connectors
RoHS:
REACH - SVHC:
Product:	Housings
Number of Positions:	4 Position
Pitch:	4 mm (0.157 in)
Gender:	Receptacle (Female)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Color:	Black
Series:	34900
Packaging:	Bulk
Brand:	Molex
Contact Gender:	Without Socket Contacts
Current Rating:	13 A
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 40 C
Number of Rows:	1 Row
Product Type:	Automotive Connectors
Factory Pack Quantity:	1400
Subcategory:	Automotive Connectors
Tradename:	MXP120
Part # Aliases:	349004120 0349004120
Unit Weight:	4,805 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

34900-4120 Datasheet

Models

STP File (Zip)

PCN

Specification Sheets

Technical Resources

Product Specification (PDF)

RoHS Certificate (PDF)

Compliance Codes

TARIC:: 8547200000
CNHTS:: 8547200000
USHTS:: 8538906000
ECCN:: EAR99

Origin Classifications

Country of Origin:: China
Assembly Country of Origin:: Not available
Country of Diffusion:: Not available

The country is subject to change at the time of shipment.

MXP120 Sealed Connector System

Molex MXP120 Sealed Connector System is a high-performance 1.20mm terminal in-line connection system for automotive and commercial vehicles. The use of 1.20mm terminals minimizes the connector interface and connector package size compared with 1.50mm pitch connectors. Molex MXP120 series connectors are USCAR compliant and meet T3-V2-S2 performance levels for in-vehicle safety system applications. The contacts are rated at 13A and the housings are sealed to withstand high-pressure spray environments.

Environmentally Sealed Connectors

Molex Environmentally Sealed Connectors provide an ideal interconnect solution for heavy-duty and harsh-environment applications. Molex offers a wide range of standard-sealed and custom-sealed interconnect systems. These connectors are suitable for applications requiring ruggedized sealed plugs, receptacles, and power connectors, including IP67 or IP68 ratings.

Safety & Driver Assist Solutions

Molex Safety and Driver Assist Solutions streamline the development of advanced features strategically designed to create a safer driving experience. Advanced Driver Assist Systems (ADAS) embedded in intelligent vehicles are virtual copilots. Automotive sensors and cameras enable facial/eye recognition, blind-spot monitoring, and parking assistance. Molex Safety and Driver Assist Solutions are ideal for night vision, distance warnings, airbags, and seat belts.
