34899-2082

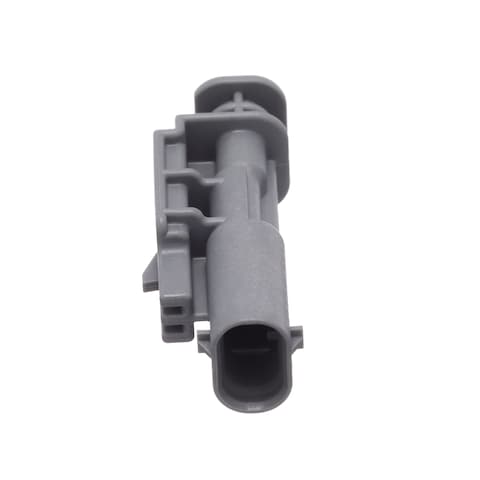

Name: Molex 34899-2082
Brand: Molex
SKU: 538-34899-2082
Price: 0.69 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-34899-2082

Mfr. No:

34899-2082

Mfr.:

Molex

Description:

Automotive Connectors MXP120 1.2mm SLD M Blade Conn 2Ckt KEYC

Datasheet:

34899-2082 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 34899-2082

In Stock: 3.456

Stock:: 3.456 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 14 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,697 €	0,70 €
	0,593 €	5,93 €
	0,556 €	13,90 €
	0,529 €	26,45 €
	0,504 €	50,40 €
	0,453 €	113,25 €
	0,432 €	216,00 €
	0,419 €	419,00 €
	0,335 €	603,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Automotive Connectors
RoHS:
Product:	Connectors
Number of Positions:	2 Position
Pitch:	4 mm (0.157 in)
Gender:	Plug (Male)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Color:	Gray
Series:	34899
Packaging:	Bulk
Brand:	Molex
Contact Gender:	Without Pin Contacts
Current Rating:	13 A
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 40 C
Number of Rows:	1 Row
Product Type:	Automotive Connectors
Factory Pack Quantity:	1800
Subcategory:	Automotive Connectors
Tradename:	MXP120
Part # Aliases:	348992082 0348992082
Unit Weight:	3,500 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

34899-2082 Datasheet

Specification Sheets

RoHS Certificate (PDF)

TARIC:: 8547200000
CNHTS:: 8547200000
USHTS:: 8538906000
ECCN:: EAR99

MXP120 Sealed Connector System

Molex MXP120 Sealed Connector System is a high-performance 1.20mm terminal in-line connection system for automotive and commercial vehicles. The use of 1.20mm terminals minimizes the connector interface and connector package size compared with 1.50mm pitch connectors. Molex MXP120 series connectors are USCAR compliant and meet T3-V2-S2 performance levels for in-vehicle safety system applications. The contacts are rated at 13A and the housings are sealed to withstand high-pressure spray environments.

Environmentally Sealed Connectors

Molex Environmentally Sealed Connectors provide an ideal interconnect solution for heavy-duty and harsh-environment applications. Molex offers a wide range of standard-sealed and custom-sealed interconnect systems. These connectors are suitable for applications requiring ruggedized sealed plugs, receptacles, and power connectors, including IP67 or IP68 ratings.

Safety & Driver Assist Solutions

Molex Safety and Driver Assist Solutions streamline the development of advanced features strategically designed to create a safer driving experience. Advanced Driver Assist Systems (ADAS) embedded in intelligent vehicles are virtual copilots. Automotive sensors and cameras enable facial/eye recognition, blind-spot monitoring, and parking assistance. Molex Safety and Driver Assist Solutions are ideal for night vision, distance warnings, airbags, and seat belts.
